Kia Rio: Body Electrical System / Windshield Wiper/Washer
Components and components location

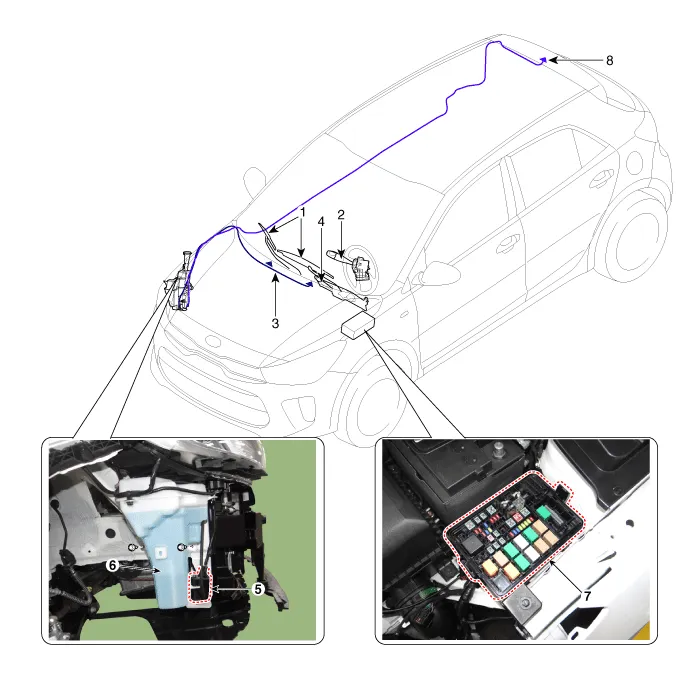

| Component Location |
| 1. Windshield wiper arm & blade
2. Wiper & washer switch 3. Windshield washer hose & nozzle 4. Wiper motor & linkage assembly |
5. Washer motor 6. Washer reservoir tank 7. Wiper/Washer relay 8. Rear washer hose & nolzzle |
Repair procedures Inspection 1. Disconnect the negative (-) battery terminal. 2. Remove the roof trim assembly.
Repair procedures Removal [BCM Type] 1. Disconnect the negative (-) battery terminal. 2. Remove the steering wheel.
