Kia Rio: Rear Parking Assist System / Parking Assist Sensor

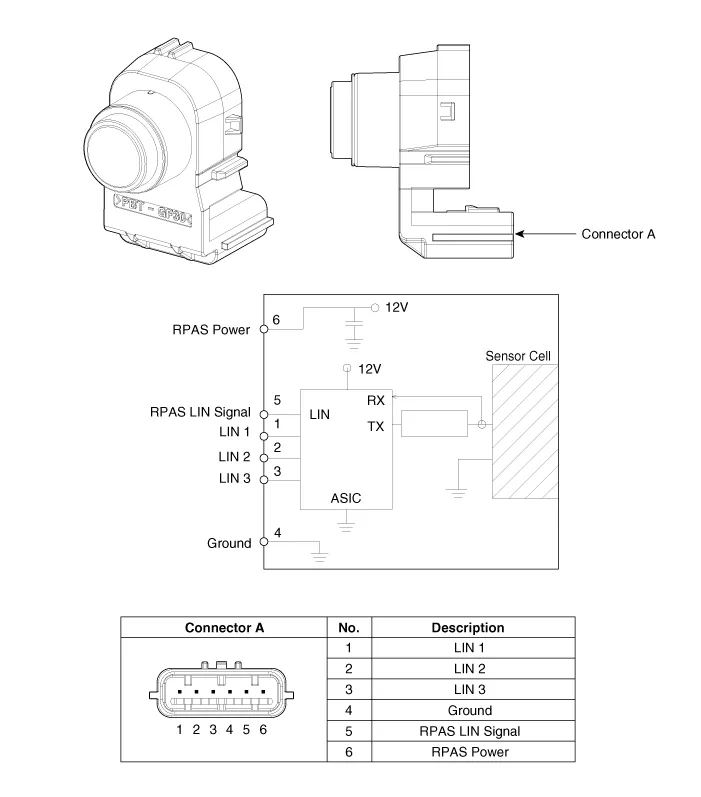

Components and components location

Components

Repair procedures

Removal
1.

Disconnect the negative (-) battery terminal.

2.

Remove the rear bumper assembly.

(Refer to Body - "Rear Bumper Assembly")

3.

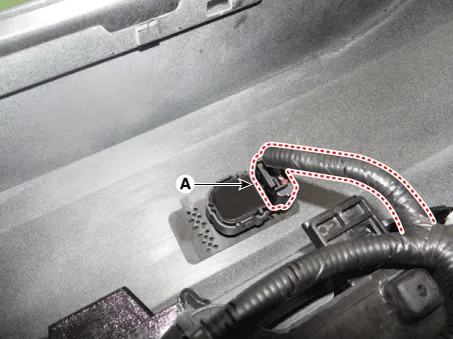

Disconnect the connector (A) from the ultrasonic sensor.

4.

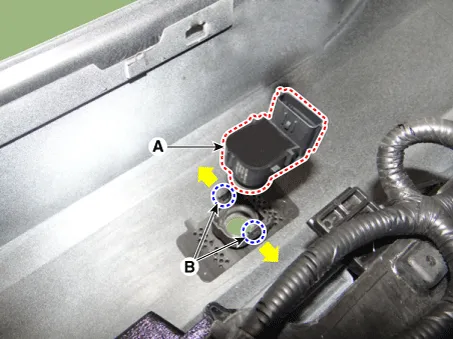

Pull out ths ultrasonic sensor (A) by opening the sensor holder (B) out.

Installation
1.

Install the ultrasonic sensor and connector.

2.

Install the rear bumper assembly.

3.

Connect the negative (-) battery terminal.

    Specifications Specification Item Specification Ultrasonic sensor Voltage rating DC 12V Detecting range 11.
