Kia Rio: Lane Departure Warning System (LDWS) / Lane Departure Warning System (LDWS) Unit

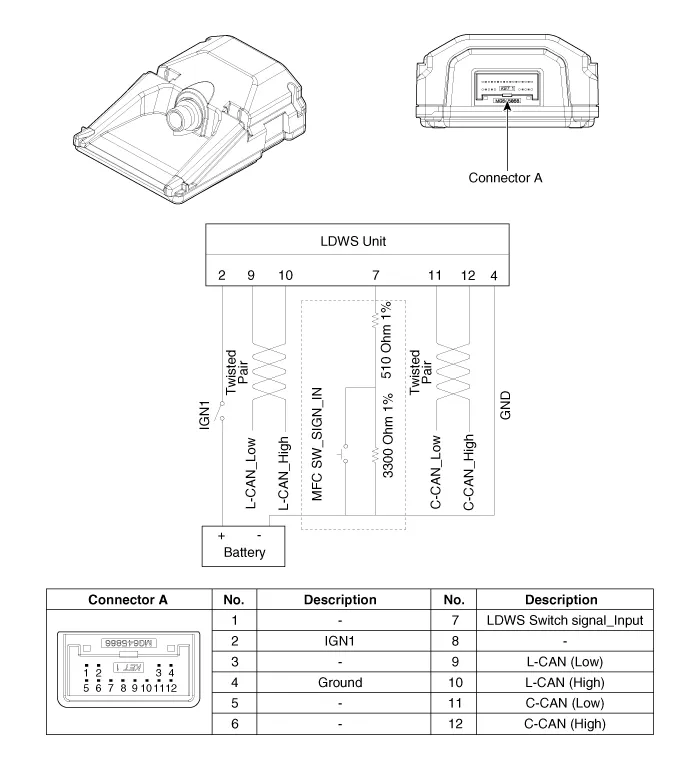

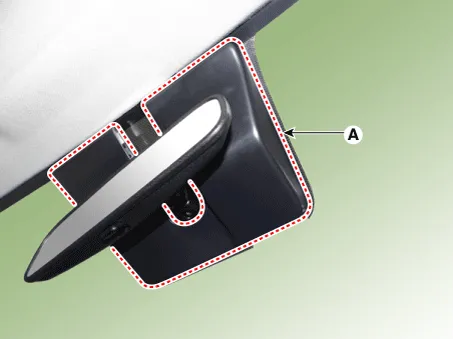

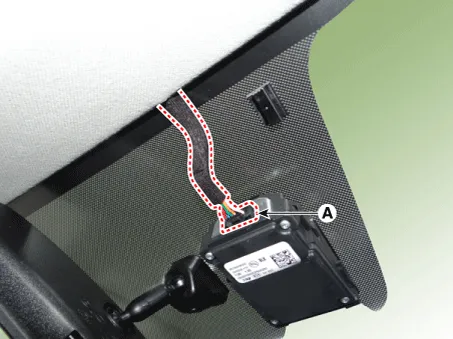

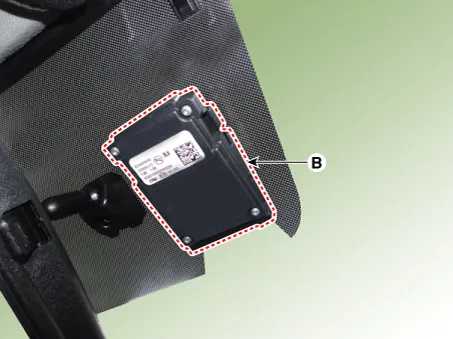

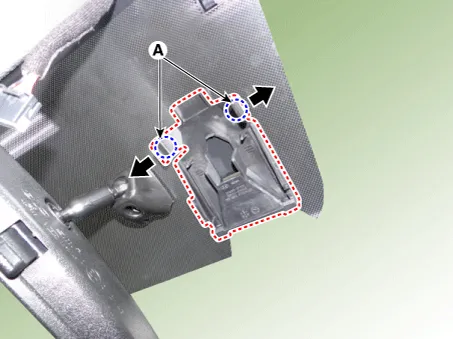

Components and components location Components 1. LDWS ON/OFF switch 2. Instrument cluster 3. LDWS unit (MFC) ※ MFC : Multi Function Camera – Function : LDWS, HBA, AEB Description and operation Description System block diagram Components of LDWS No Item Function Position 1 LDWS Unit 1) Lane Departure Warning System (LDWS) : Detects the current driving lane ahead and engages warning function if the vehicle is in danger of departing from the current driving lane.

Specifications Specification Item Type Bulb Watt (W) Front Headlamp Halogen Low/High H4 LL 55/60 Turn signal lamp PY21W 21 Position lamp W5W 5 Halogen + SBL (Position lamp) Low/High HB3 HL+ 60 Turn signal lamp PY21W 21 Position lamp LED LED Halogen + SBL (DRL / Position lamp) Low/High HB3 HL+ 60 Turn signal lamp PY21W 21 Position lamp LED LED Daytime Running Light (DRL) LED LED Static bending light (SBL) H7 LL 55 Front fog lamp HB4 51 Turn signal lamp (Side) WY5W 5 Door mirror turn signal lamp LED LED Rear Rear combination lamp Bulb Type Tail lamp W5W L/L 5 Tail / Stop lamp P21/5W L/L 5 Turn signal lamp PY21W L/L 21 Back up lamp W16W 16 LED Type Tail / Stop lamp LED LED Turn signal lamp PY21W 21 Back up lamp W16W 16 Rear fog lamp LED LED High mounted stop lamp Bulb type W5W 5 LED type LED LED License plate lamp W5W 5 Interior Map lamp W10W 10 Room lamp FESTOON 10 Luggage lamp FESTOON 10 Vanity lamp FESTOON 5 Components and components location Component Location 1 .
