Kia Rio: Body (Interior and Exterior) / Hood
Repair procedures
| Adjustment |
| 1. |

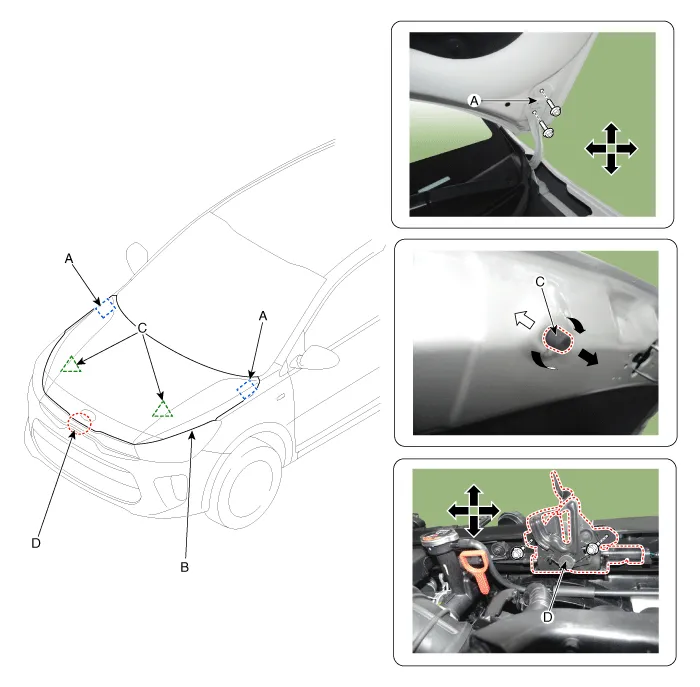

After loosening the hinge (A) mounting bolts, adjust the hood (B) by moving it up and down, or right and left. |
| 2. |
Adjust the hood height by turning the hood overslam bumpers (C). |
| 3. |
After loosening the hood latch (D) mounting bolts, adjust the latch by moving it up and down, or right and left.
|
