Kia Rio: Front Seat Belt / Front Seat Belt Buckle

Kia Rio 2017-2023 YB Service Manual / Body (Interior and Exterior) / Front Seat Belt / Front Seat Belt Buckle

Components and components location

Component Location

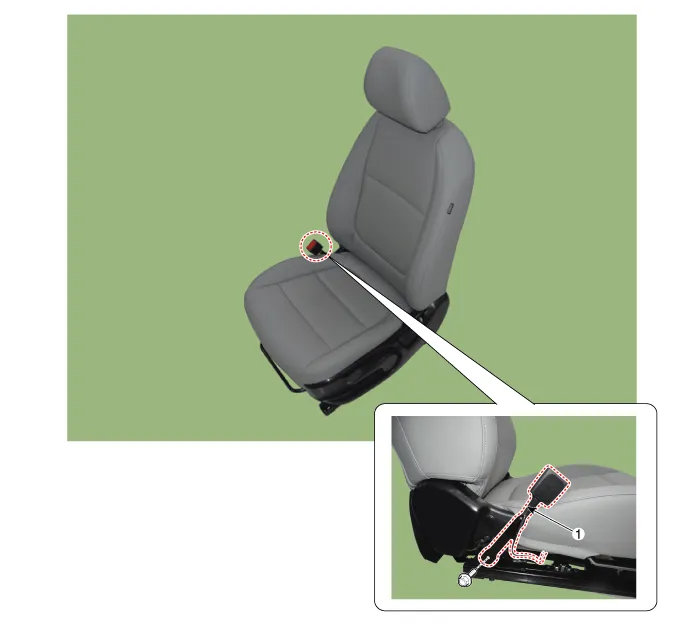

1. Front seat belt buckle


Repair procedures

Replacement
1.

Remove the front seat assembly.

(Refer to Front Seat - "Front Seat Assembly")

2.

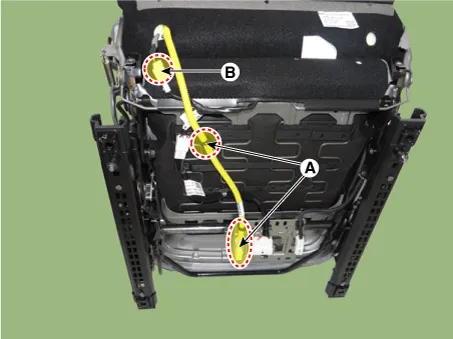

Disconnect the front seat belt buckle connector wiring (A).
3.

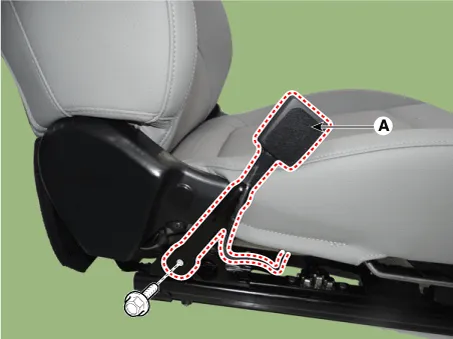

Remove the front seat belt buckle (A) loosening the mounting bolt.

Tightening torque :

39.2 - 53.9 N·m (4.0 - 5.5 kgf·m, 28.9 - 39.8 lb·ft)

4.

Install in the reverse order of removal.


•

Make sure that the connector is plugged in properly.

•

Replace any damaged clips.
