Kia Rio: Front Seat Belt / Height Adjust

Kia Rio 2017-2023 YB Service Manual / Body (Interior and Exterior) / Front Seat Belt / Height Adjust

Components and components location

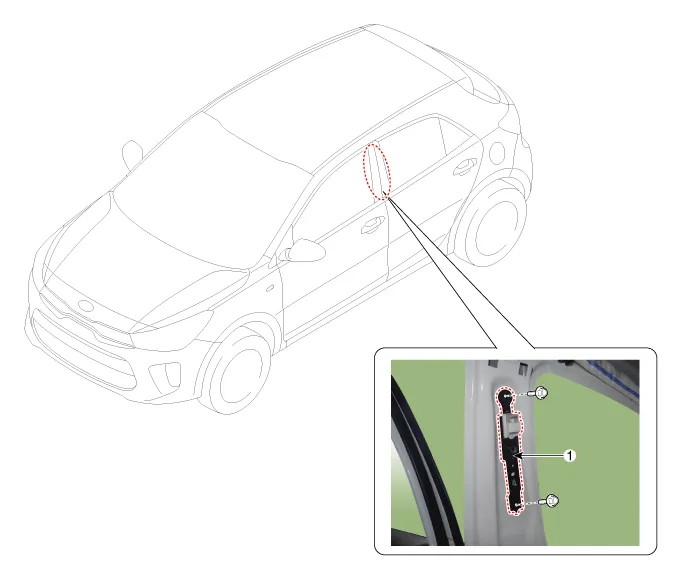

Component Location

1. Height adjust


Repair procedures

Replacement
1.

Remove the front seat belt upper anchor.

(Refer to Front Seat Belt - "Front Seat Belt Retractor")

2.

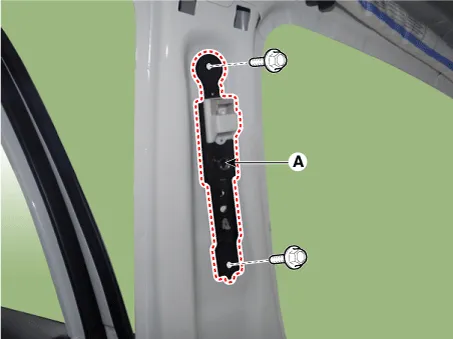

After loosening the mounting bolts, then remove the height adjust (A).

Tightening torque :

39.2 - 53.9 N·m (4.0 - 5.5 kgf·m, 28.9 - 39.8 lb·ft)

3.

Install in the reverse order of removal.



Replace any damaged clips.
