Kia Rio: Front Seat Belt / Front Seat Belt Retractor

Kia Rio 2017-2023 YB Service Manual / Body (Interior and Exterior) / Front Seat Belt / Front Seat Belt Retractor

Components and components location

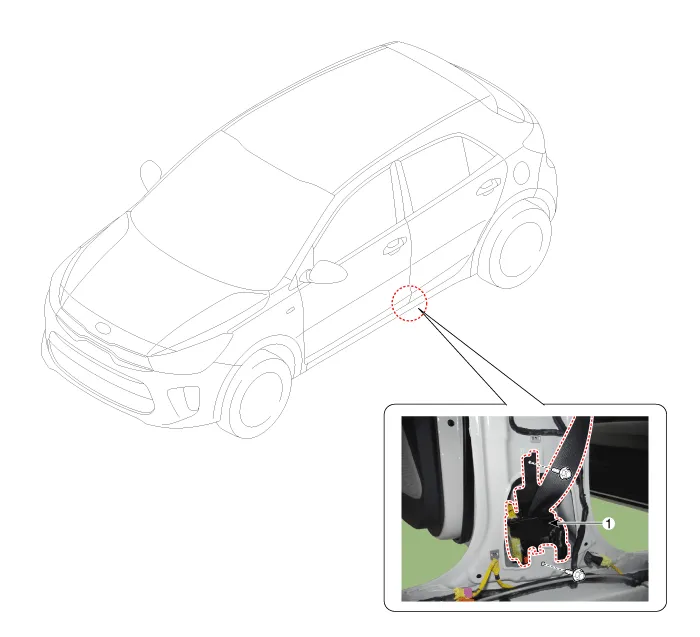

Component Location

1. Front seat belt retractor

Repair procedures

Replacement
1.

Remove the center pillar upper trim.

(Refer to Interior Trim - "Center Pillar Trim")

2.

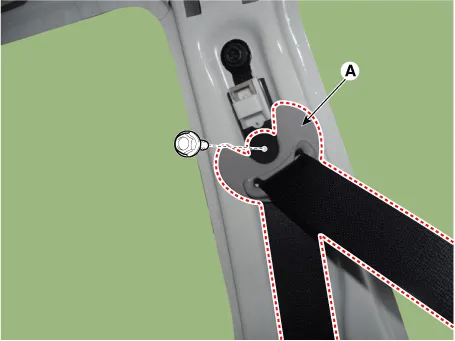

Remove the front seat belt upper anchor (A) after loosening the mounting bolt.

Tightening torque :

39.2 - 53.9 N·m (4.0 - 5.5 kgf·m, 28.8 - 39.8 lb·ft)

3.

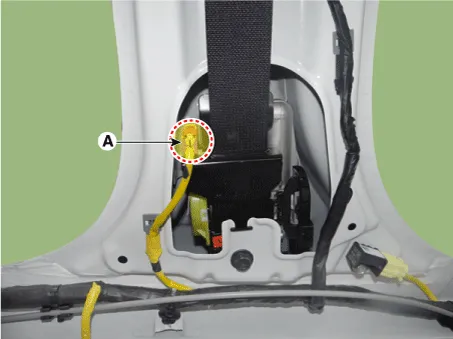

Disconnect the front seat belt retractor connector (A).

Tightening torque :

7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 lb·ft)

4.

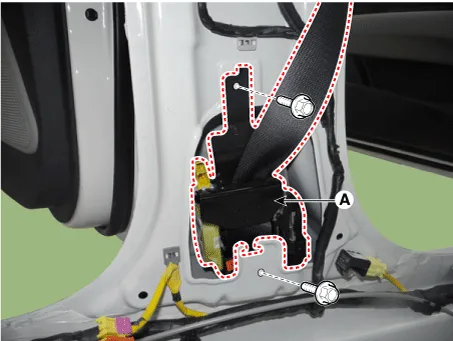

Remove the front seat belt retractor (A) after loosening the mounting bolts.
5.

Install in the reverse order of removal.


•

Make sure that the connector is plugged in properly.

•

Replace any damaged clips.

    Components and components location Components 1. Front seat belt retractor 2. Height adjuster 3. Rear seat belt retractor [side] 4.

    Components and components location Component Location 1. Height adjust Repair procedures Replacement 1.
