Specifications

Specifications

Items
Specifications
Rated voltage
DC 12 V
Operating temperature range
-22 - 176°F (-30 - 80°C)
Rated load
Washer
Washer : 6A (Motor load)

Components and components location

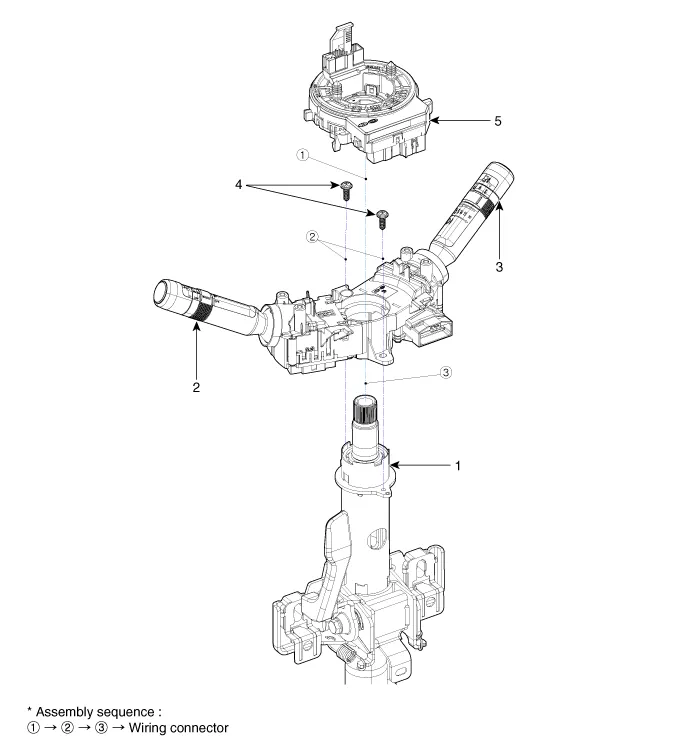

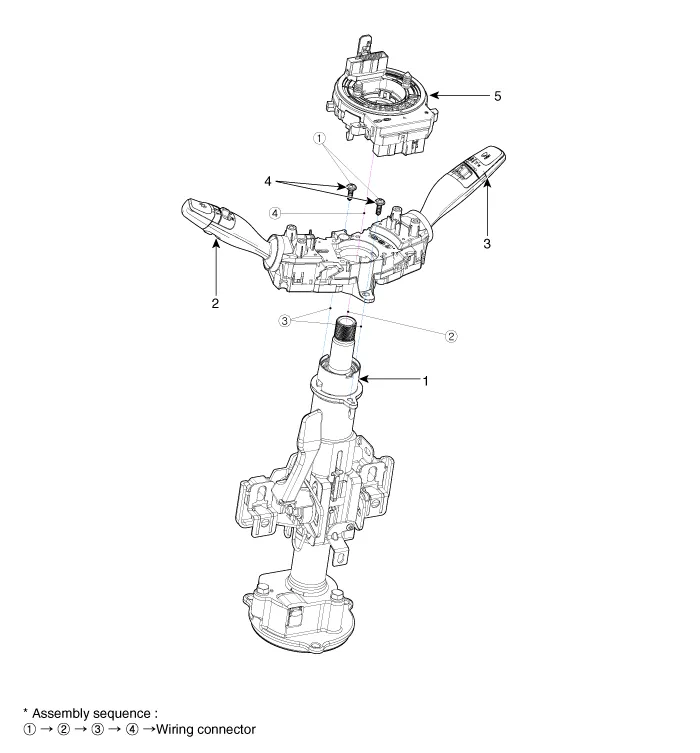

Components
[BCM Type]

1 . Steering column shaft
2 . Lighting switch
3 . Wiper/Washer switch
4 . Screws
5 . Clock spring

[Non -BCM Type]

1 . Steering column shaft
2 . Lighting switch
3 . Wiper/Washer switch
4 . Screws
5 . Clock spring

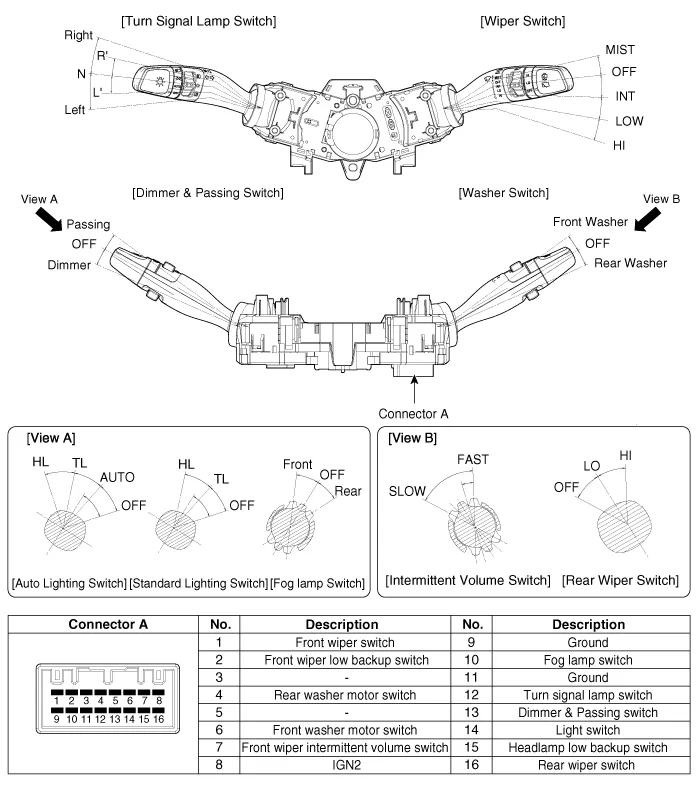

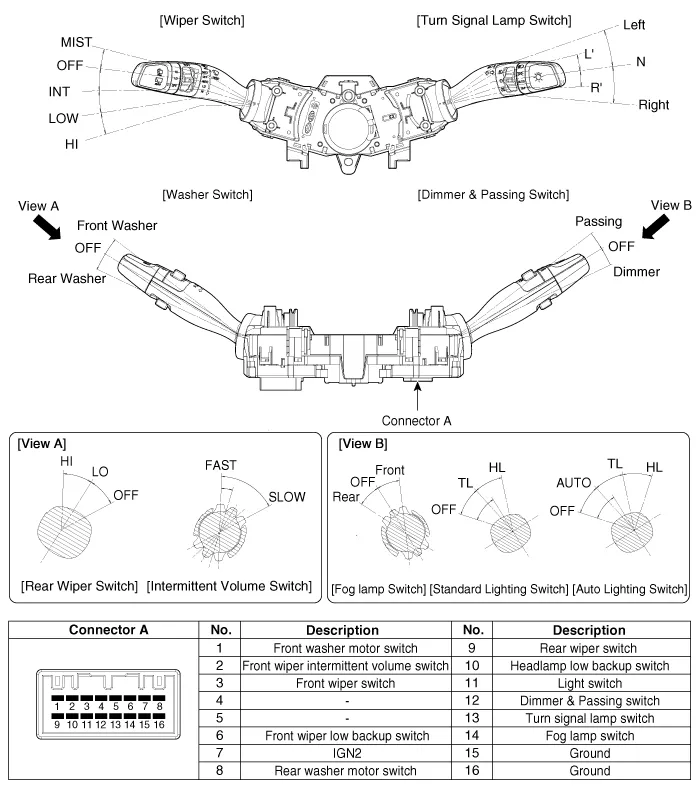

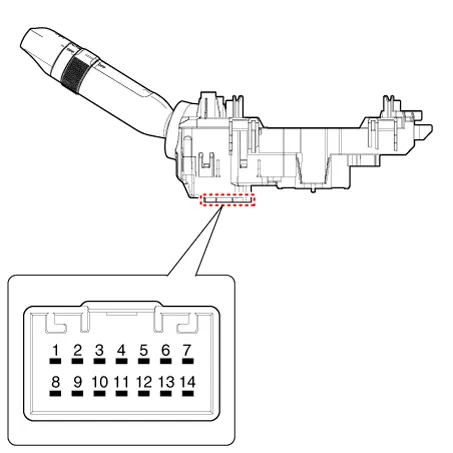

[BCM Type]

(LHD)

(RHD)

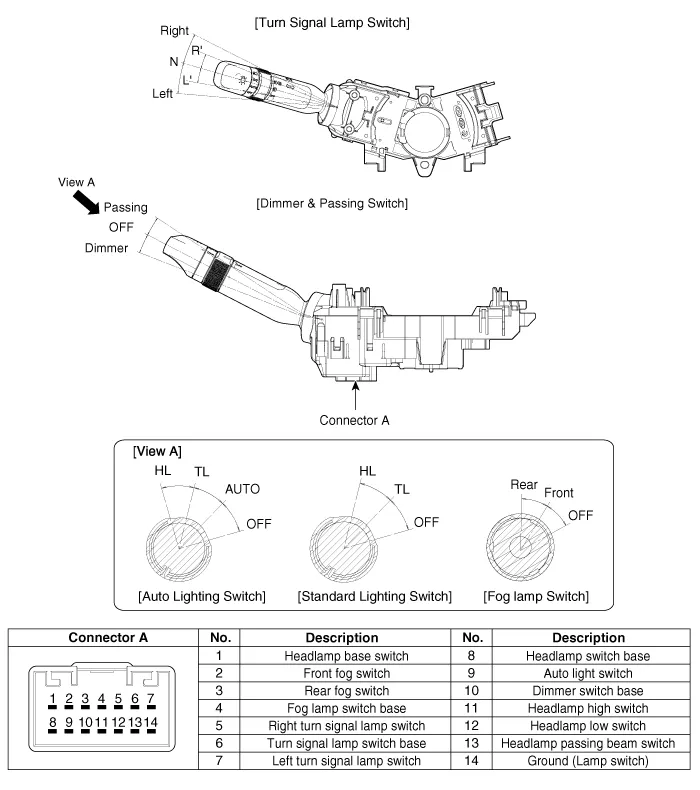

[Non -BCM Type]

(LHD)

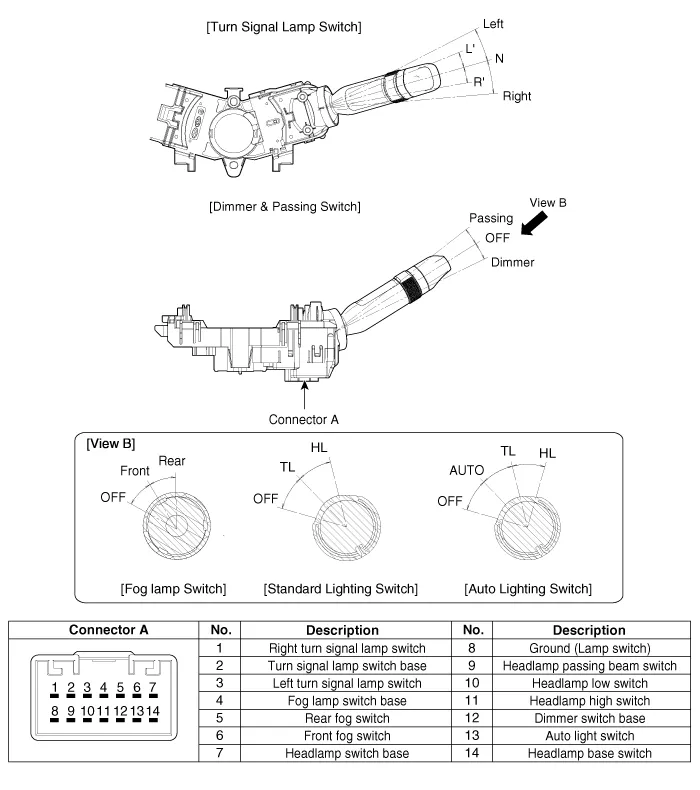

(Turn Signal Lamp Switch / Dimmer & Passing Switch)

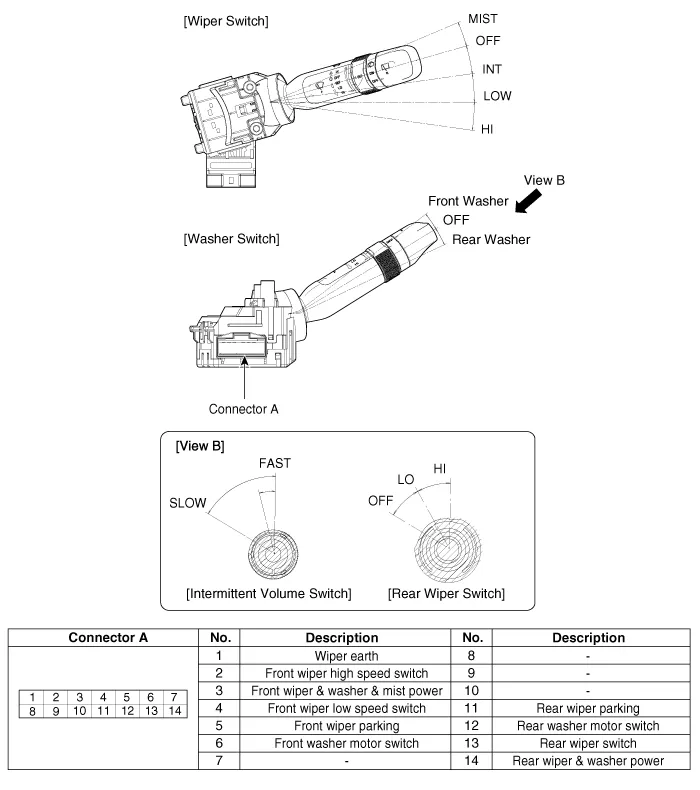

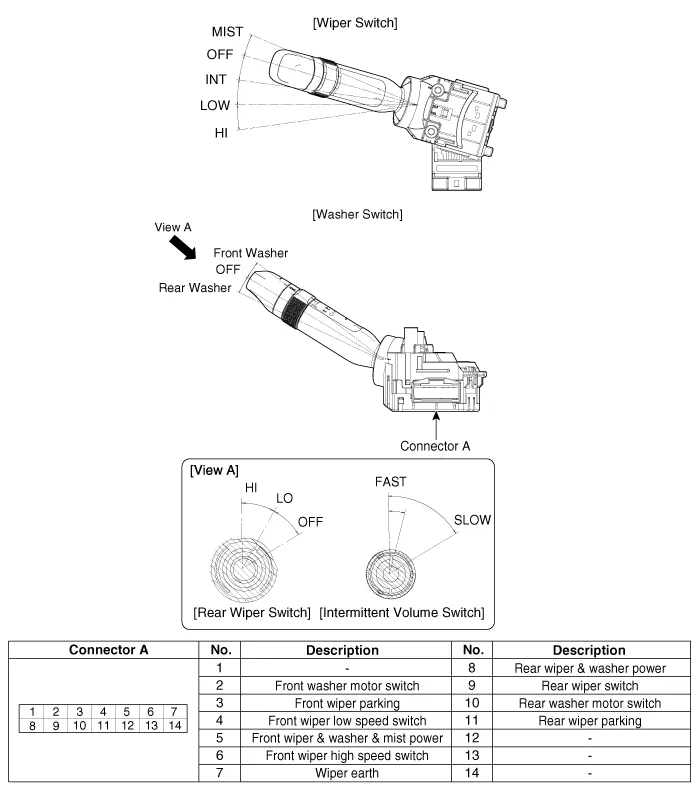

(Wiper Switch / Washer Switch)

(RHD)

(Wiper Switch / Washer Switch)

(Turn Signal Lamp Switch / Dimmer & Passing Switch)

Repair procedures

Removal
[BCM Type]
1.

Disconnect the negative (-) battery terminal.
2.

Remove the steering wheel.

(Refer to Steering System - "Steering Wheel")

3.

Remove the steering column upper and lower shrouds after loosening the screws.

(Refer to Body - "Steering Column Shroud Panal")

4.

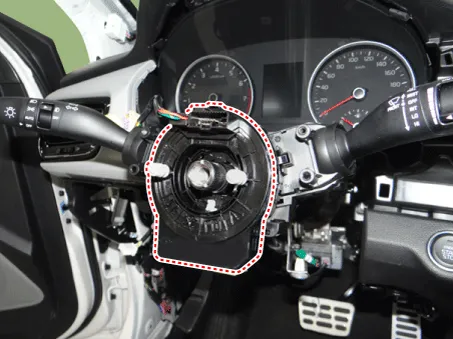

Remove the clock spring.

(Refer to Restraint - "Driver Airbag (DAB) Module and Clock Spring")

5.

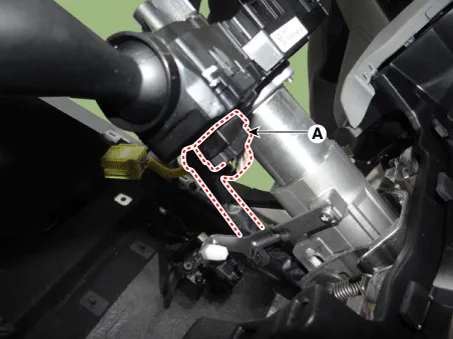

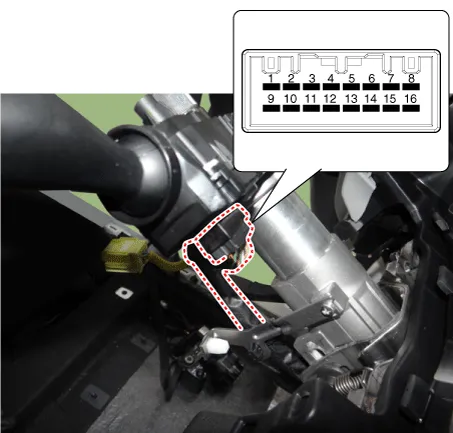

Disconnect the multifunction switch connector (A).
6.

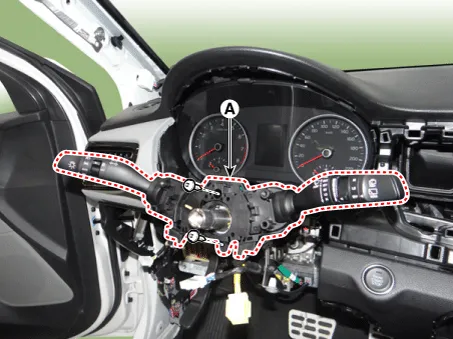

Remove the multifunction switch assembly (A) after loosening the screws.
[Non -BCM Type]

(LH)

(Turn Signal Lamp Switch / Dimmer & Passing Switch)

1.

Disconnect the negative (-) battery terminal.
2.

Remove the steering column upper and lower shrouds after loosening the screws.

(Refer to Body - "Steering Column Shroud Panal")

3.

Remove the wiper switch / washer switch.

(Refer to Body Electrical System - "Multifunction Switch")

4.

Remove the steering wheel.

(Refer to Steering System - "Steering Wheel")

5.

Remove the clock spring.

(Refer to Restraint - "Driver Airbag (DAB) Module and Clock Spring")

6.

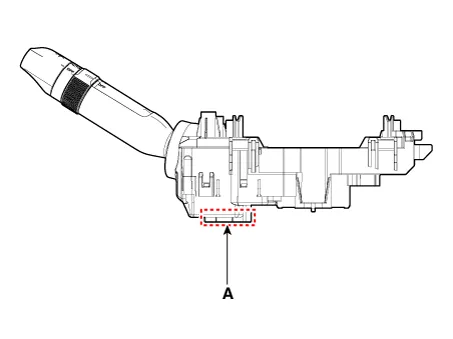

Disconnect the turn signal lamp switch / dimmer & passing switch connector (A).
7.

Remove the turn signal lamp switch / dimmer & passing switch (A) after loosening the mounting screws.

(RH)

(Wiper Switch / Washer Switch)

1.

Disconnect the negative (-) battery terminal.
2.

Remove the steering column upper and lower shrouds after loosening the screws.

(Refer to Body - "Steering Column Shroud Panal")

3.

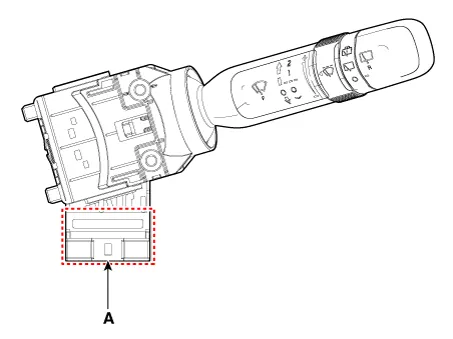

Disconnect the wiper switch / washer switch connector (A).
4.

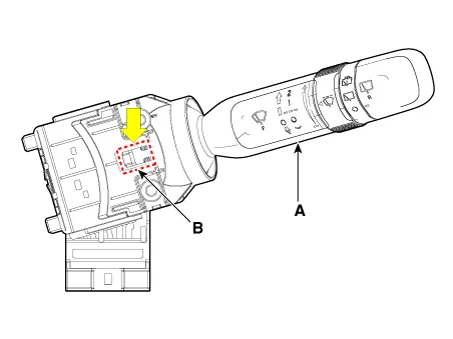

Remove the wiper switch / washer switch (A) by pushing the lock pin (B).
Installation
[BCM Type]
1.

Install the multifunction switch.
2.

Install the clock spring.
3.

Install the steering column upper and lower shrouds.
4.

Install the steering wheel.
5.

Connect the negative (-) battery terminal.
[Non-BCM Type]

(LH)

(Turn Signal Lamp Switch / Dimmer & Passing Switch)

1.

Install the turn signal lamp switch / dimmer & passing switch.
2.

Connect the turn signal lamp switch / dimmer & passing switch connector.
3.

Install the clock spring.
4.

Install the steering wheel.
5.

Install the wiper switch / washer switch.
6.

Install the steering column upper and lower shrouds.
7.

Connect the negative (-) battery terminal.

(RH)

(Wiper Switch / Washer Switch)

1.

Install the wiper switch / washer switch.
2.

Connect the wiper switch / washer switch connector.
3.

Install the steering column upper and lower shrouds.
4.

Connect the negative (-) battery terminal.
Inspection

Multifunction Switch Inspection

[BCM Type]
1.

Check for continuity between the terminals in each switch position as shown below.

[Left Handle Drive]

Switch
Switch position
Switch terminal
Resistance (Ω, ±3.5%)
Front wiper switch
 MIST
 1-9
 330
OFF
 ∞
Intermittent (AUTO)
 800
LOW
 1,800
HIGH
 5,700
Rear wiper switch
 OFF
 9-16
 ∞
LOW
 910
HIGH
 2,910
Wiper intermittent volume
 Volume 1
 7-9
 330
Volume 2
 690
Volume 3
 1,310
Volume 4
 2,610
Volume 5
 7,310
Fog lamp switch
 OFF
 9-10
 ∞
Front fog lamp
 910
Rear fog lamp
 2,910
Turn signal switch
 OFF
 9-12
 ∞
Left
 910
Right
 2,910
Dimmer & Passing switch
 OFF
 9-13
 ∞
Passing
 910
Dimmer
 2,910
Light switgh
 OFF
 9-14
 ∞
AUTO
 680
Tail lamp
 1,680
Low beam
 5,580

[Right Handle Drive]

Switch
Switch position
Switch terminal
Resistance (Ω, ±3.5%)
Front Wiper switch
 MIST
 3-16
 330
OFF
 ∞
Intermittent (AUTO)
 800
LOW
 1,800
HIGH
 5,700
Rear wiper switch
 OFF
 9-16
 ∞
LOW
 910
HIGH
 2,910
Wiper intermittent volume
 Volume 1
 2-16
 330
Volume 2
 690
Volume 3
 1,310
Volume 4
 2,610
Volume 5
 7,310
Fog lamp switch
 OFF
 14-16
 ∞
Front fog lamp
 910
Rear fog lamp
 2,910
Turn signal switch
 OFF
 13-16
 ∞
Left
 910
Right
 2,910
Dimmer & Passing switch
 OFF
 12-16
 ∞
Passing
 910
Dimmer
 2,910
Light switgh
 OFF
 11-16
 ∞
AUTO
 680
Tail lamp
 1,680
Low beam
 5,580

[Non -BCM Type]

(LH)

(Turn Signal Lamp Switch / Dimmer & Passing Switch)

1.

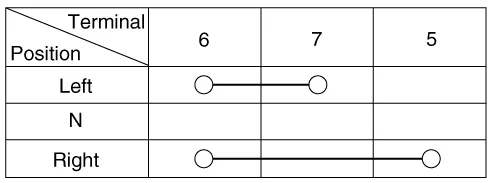

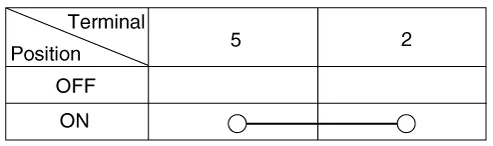

Check for continuity between the terminals in each switch position as shown below.

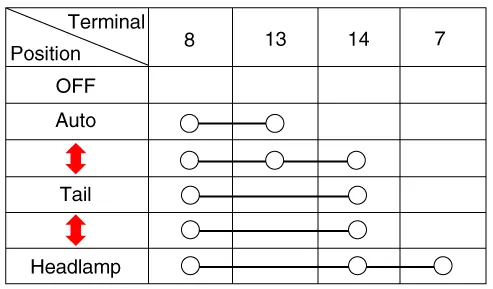

Lighting switch (Auto light)

[LHD]

[RHD]

Lighting Switch (Standard)

[LHD]

[RHD]

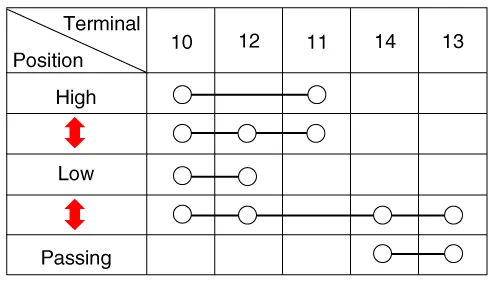

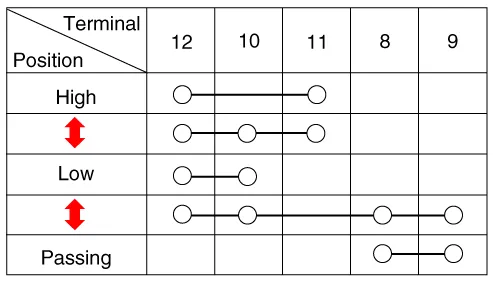

Dimmer And Passing Switch

[LHD]

[RHD]

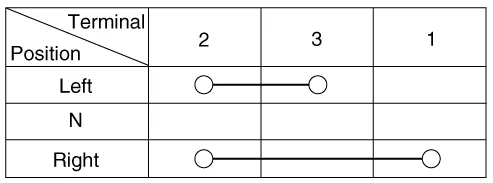

Turn Signal Switch

[LHD]

[RHD]

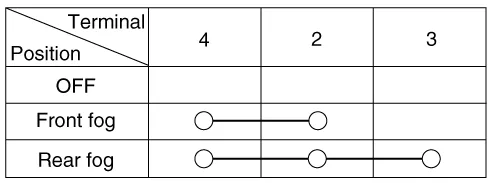

Front/Rear Fog Lamp

[LHD]

[RHD]

(RH)

(Wiper Switch / Washer Switch)

1.

Check for continuity between the terminals in each switch position as shown below.

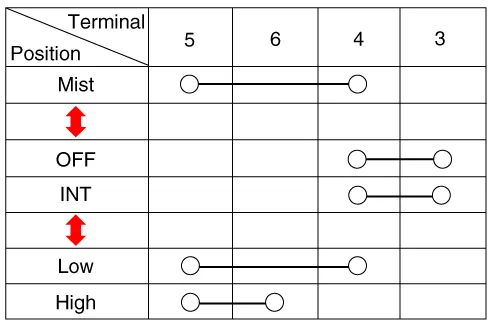

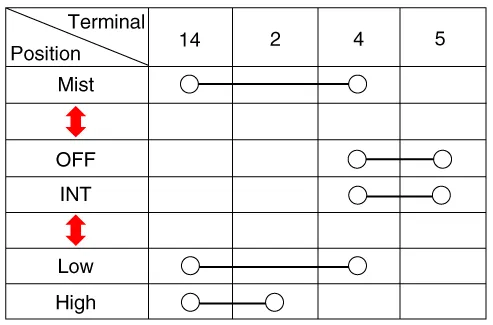

Front Wiper & Washer Switch

[LHD]

[RHD]

Front Washer Switch

[LHD]

[RHD]

Rear Wiper & Washer Switch

[LHD]

[RHD]

Inspection (With KDS/GDS)

[BCM Type Only]
1.

In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (KDS/GDS).

The diagnostic system(KDS/GDS) provides the following information.

(1)

Self diagnosis : Checking failure and code number (DTC)
(2)

Current data : Checking the system input/output data state
(3)

Actuation test : Checking the system operation condition
(4)

Additional function : Controlling other features including system option setting and zero point adjustment

2.

Select the 'Car model' and the 'Body Control Module (BCM)' to be checked in order to check the vehicle with the tester.
3.

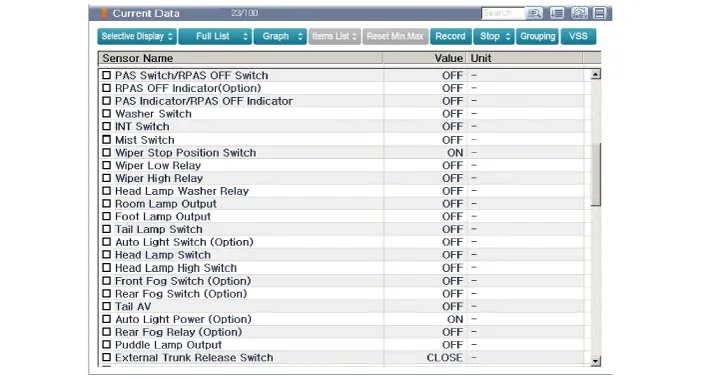

Select the 'Current Data' menu to search the current state of the input/output data.
