Kia Rio: Body Electrical System / Power Door Locks
Components and components location

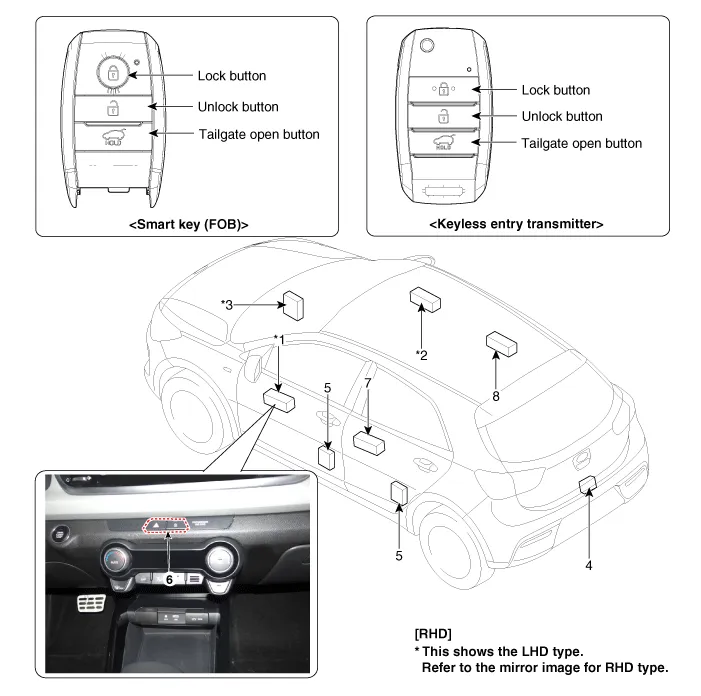

| Component Location |
| 1. Driver power window switch
2. Assist power window switch 3 . Body Comtrol Module (BCM) 4 . Tailgate actuator |
5 . Door latch lock actuator
6 . Door lock switch 7 . Rear left power window switch 8 . Rear right power window switch |
Specifications Specifications Items Specifications Rated voltage DC 12 V Operating temperature range -22 - 176°F (-30 - 80°C) Rated load Washer Washer : 6A (Motor load) Components and components location Components [BCM Type] 1 .
Components and components location Components 1. Door lock/unlock knob cable 2. Door latch assembly Repair procedures Inspection • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
