Kia Rio: Hood / Hood Insulator Pad

Repair procedures

Replacement
1.

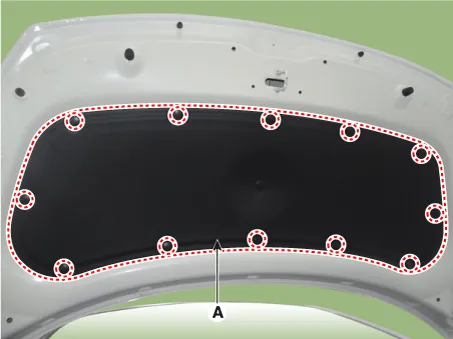

Using a clip remover, detach the clips, and remove the hood insulator pad (A).



Be careful not to damage the hood and body.

2.

Install in the reverse order of removal.



Replace any damaged clips.
