Kia Rio: Hood / Hood Latch Release Handle

Kia Rio 2017-2023 YB Service Manual / Body (Interior and Exterior) / Hood / Hood Latch Release Handle

Components and components location

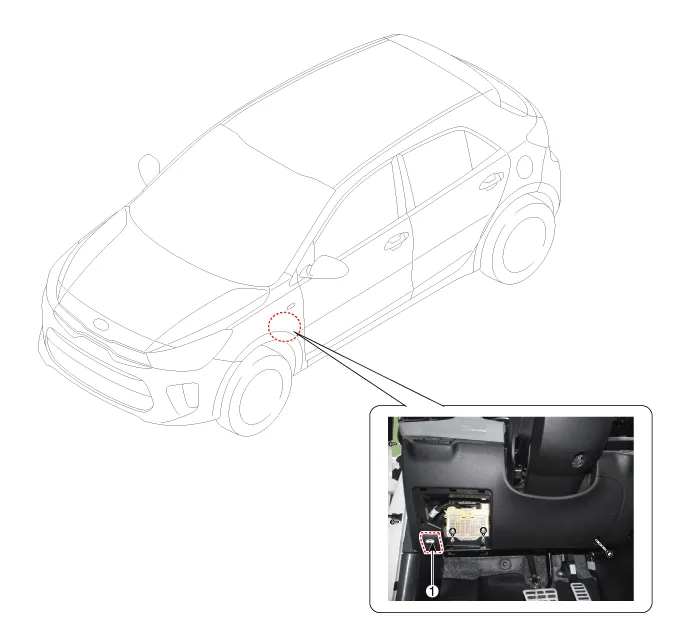

Component Location

1. Hood latch release handle

Repair procedures

Replacement

• Put on gloves to protect your hands.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface

•	Be careful not to bend or scratch the trim and panels.

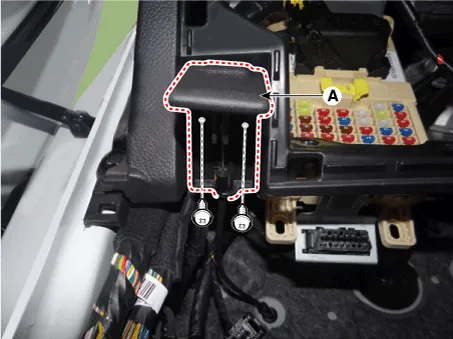

1.	Separate the hood latch release handle cable (A) after loosening the mounting screws.

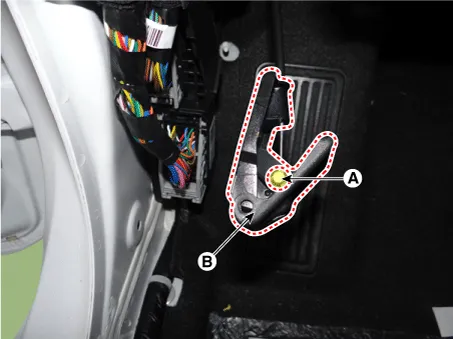

2.	Disconnect the hood latch release handle cable (A) and then remove the hood latch handle (B).

Install in the reverse order of removal.

•	Make sure the connector is connected properly.

•	Replace any damaged clips.
