Kia Rio: Suspension System / Front Suspension System
Components and components location

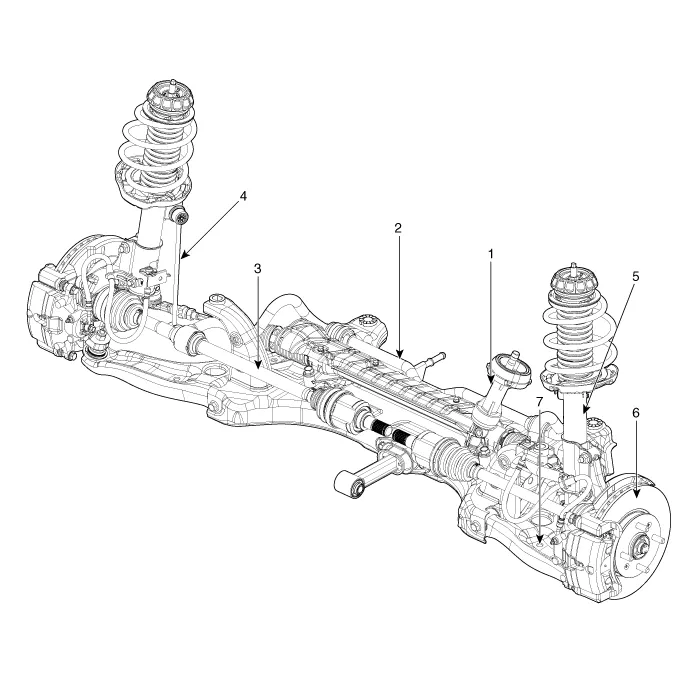

| Components Location |
| 1. Gear box 2. Stabilizer bar 3. Driveshaft 4. Stabilizer link |
5. Shock absorber 6. Front axle 7. Front lower arm |
Specifications Specification Front Suspension Item Specification Suspension type MacPherson Strut Shock absorber Type General Valve Rear Suspension Item Specification Suspension type Couple Torsion Beam Axle Shock absorber Type General Valve Wheel & Tire Item Specification Wheel Aluminum 6.
Components and components location Components Location 1. Lock nut 2. Insulator dust cap 3. Self lock nut 4. Strut insulator 5.
