| Components Location |

| 1. Lock nut 2. Insulator dust cap 3. Self lock nut 4. Strut insulator 5. Strut bearing 6. Spring upper seat |
7. Spring upper pad 8. Coli spring 9. Dust cover 10. Bumper rubber 11. Spring lower pad 12. Shock absorber |
| Removal |
| 1. |

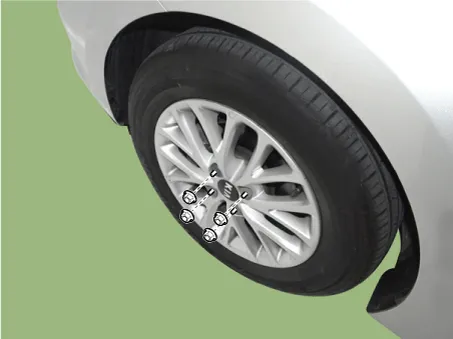

Remove wheel nuts, front wheel and tire from front hub.
|
| 2. |
Remove the cowl top cover. (Refer to Body - "Cowl Top Cover") |
| 3. |

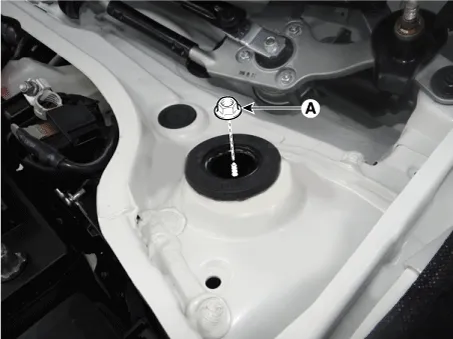

Remove the strut lock nuts (A).
|
| 4. |

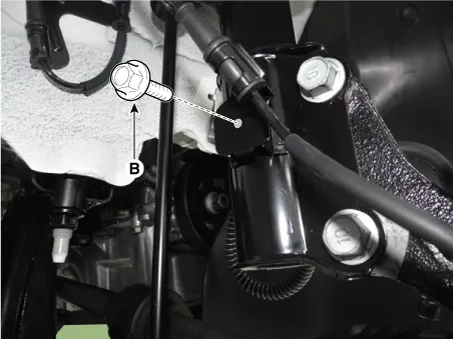

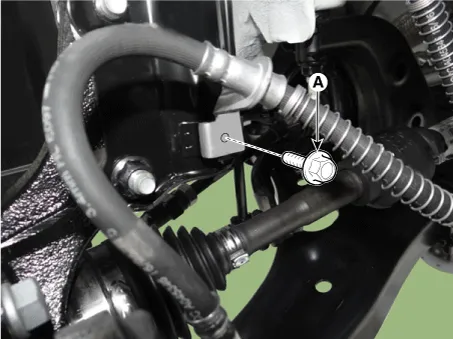

Remove the brake caliper hose bracket bolt (A) and wheel speed sensor bracket bolt (B).
|
| 5. |

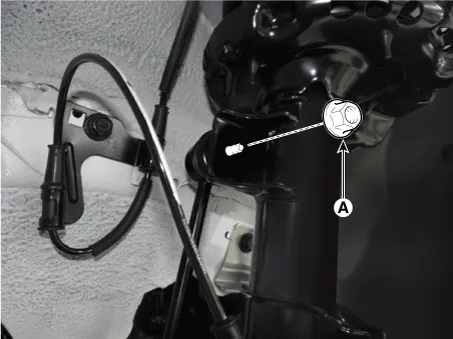

Remove the stabilizer link nut (A).
|
| 6. |

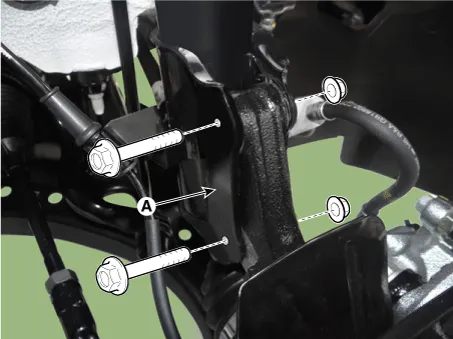

Loosen the bolts and then remove the strut assembly (A) from the knuckle.
|
| 7. |
Install in the reverse order of removal. |
| Disassembly |
| 1. |
Using a strut spring compressor, compress the coil spring.
|
| 2. |

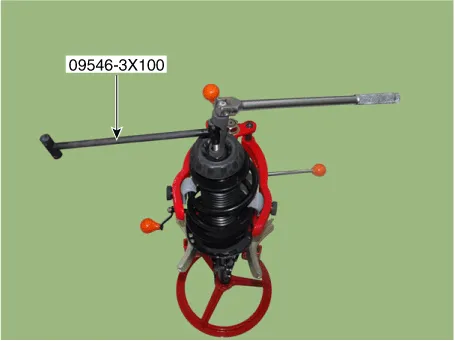

Using the SST (09546-3X100), loosen the self locking nut.
|
| 3. |
Remove the insulator, spring seat, coil spring and dust cover from the strut assembly. |
| 4. |
Reassembly is the reverse of the disassembly. |
| Inspection |
| 1. |
Check the strut insulator for wear or damage. |
| 2. |
Check rubber parts for damage or deterioration. |
| 3. |

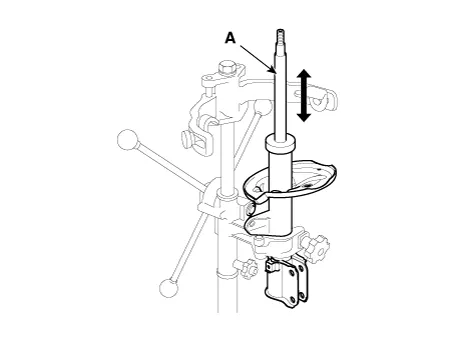

Compress and extend the piston rod (A) and check that there is no abnormal resistance or unusual sound during operation.
|
Disposal
| 1. |
Fully extend the piston rod. |
| 2. |

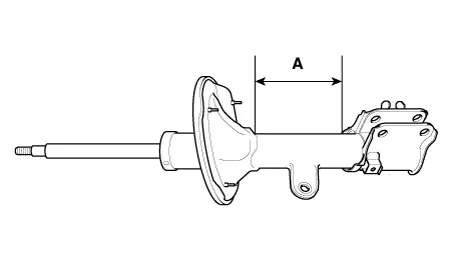

Drill a hole on the A section to remove gas from the cylinder.
|
