Kia Rio: Blower / Climate Control Air Filtar

Kia Rio 2017-2023 YB Service Manual / Heating,Ventilation, Air Conditioning / Blower / Climate Control Air Filtar

Description and operation

Description

The climate control air filter is located in the bower unit. It eliminates foreign materials and odor. The particle filter performs a role as an odor filter as well as a conventional dust filter to ensure comfortable interior environment.

Repair procedures

Replacement

1.	Open the glove box.

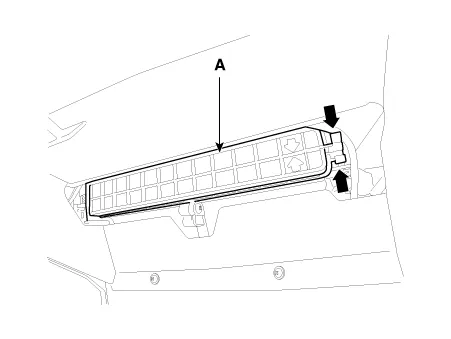

2.	Remove the filter cover (A) by pressing the knob.

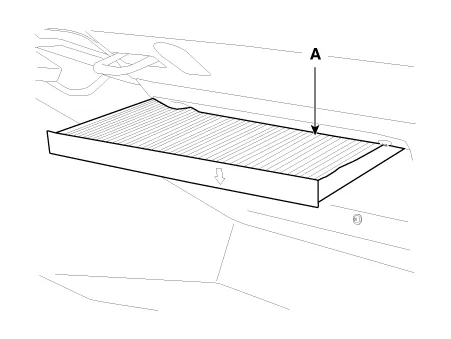

Replace the air filter (A) with a new one according to the direction of air filter.

•	To remove the filter easily, press the right side inward then pull out the filter.

•	In case of driving in an air-polluted area or rugged terrain, check and replace the air filter as frequently as possible.

4.	Installation is the reverse order of removal.
