| Removal |
| 1. |

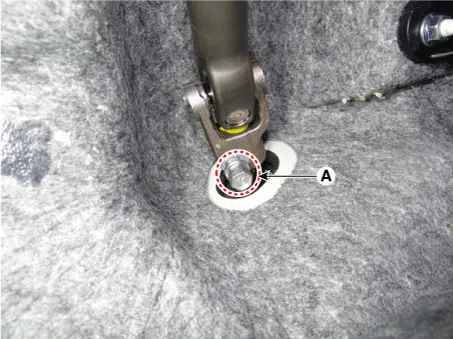

Remove the universal joint bolt (A).
|
| 2. |

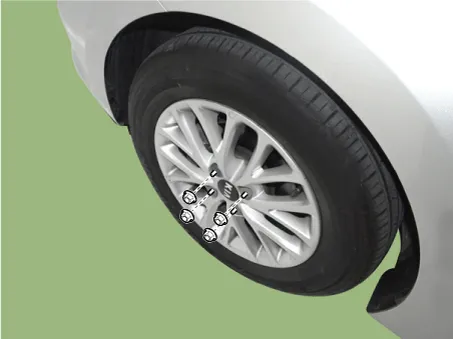

Remove wheel nuts, front wheel and tire from front hub.
|
| 3. |

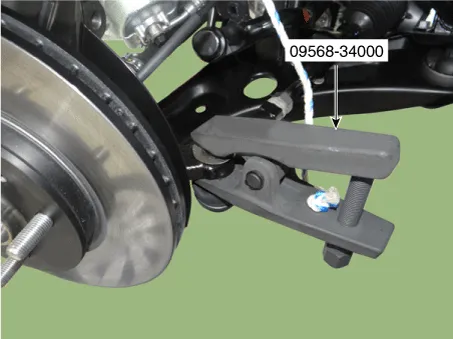

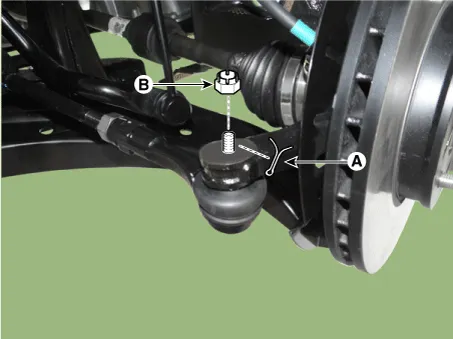

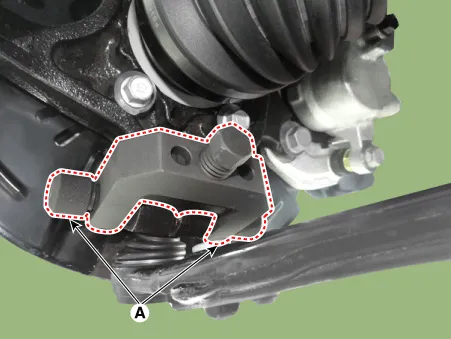

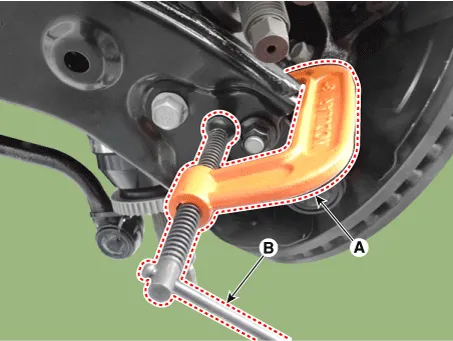

Remove the tie rod end ball joint from the knuckle by using the SST (09568-34000).
|
| 4. |

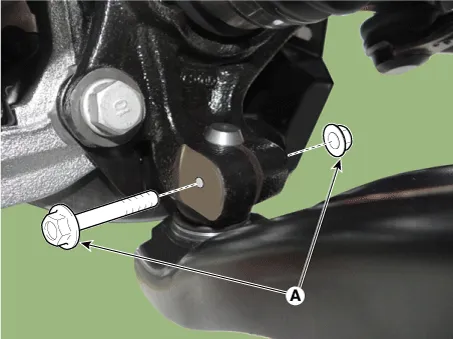

Remove the lower arm bolt and nut (A).
|
| 5. |

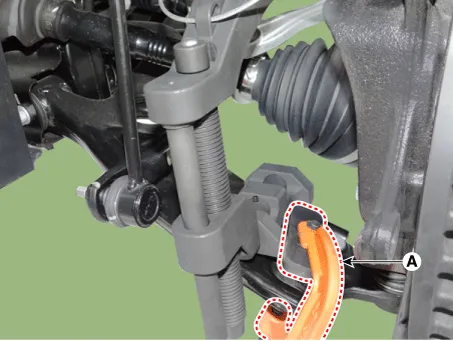

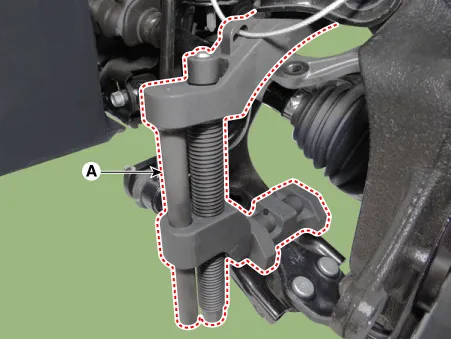

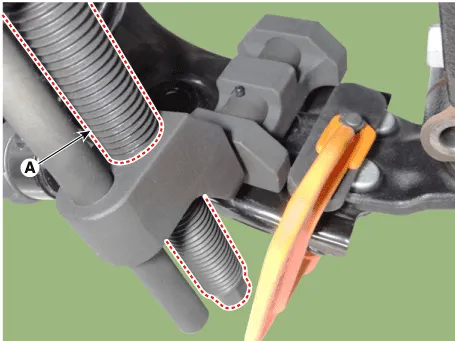

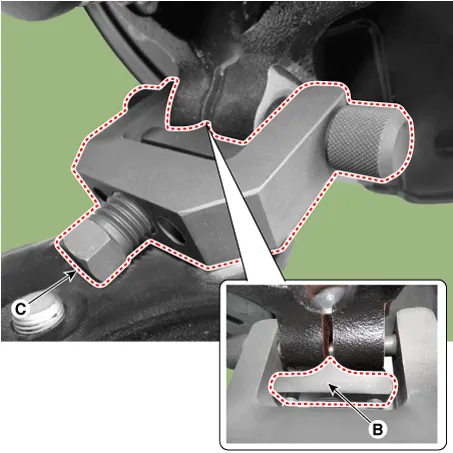

Remove the front lower arm from the front knuckle using the SST (0K545-A9100).
|
| 6. |

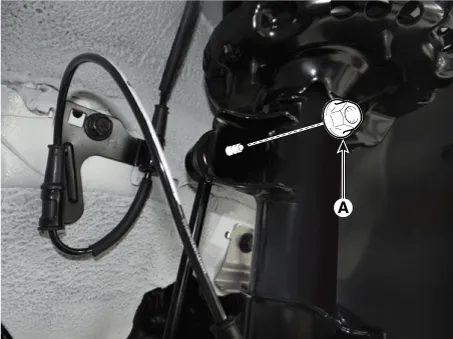

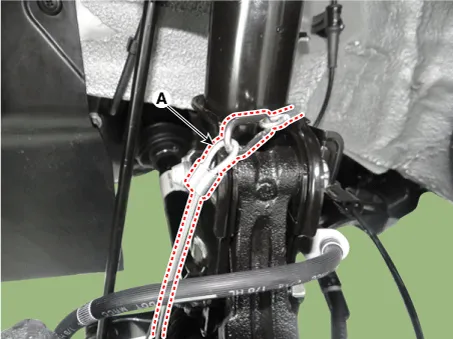

Remove the stabilizer link nut (A).
|
| 7. |
Remove the hanger.
|
| 8. |

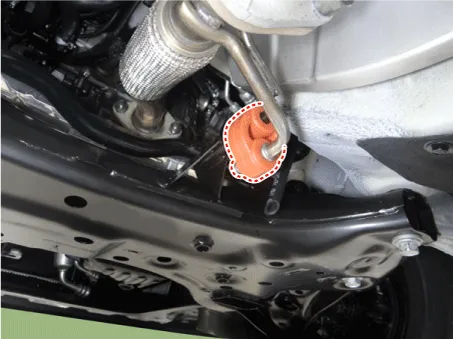

Remove the roll rod bracket. D 1.4 U2 TCI (Refer to Engine Mechanical System - "Engine Mounting") G 1.0 T-GDI (Refer to Engine Mechanical System - "Engine Mounting") G 1.2 MPI (Refer to Engine Mechanical System - "Engine Mounting") G 1.4 MPI (Refer to Engine Mechanical System - "Engine Mounting") |
| 9. |

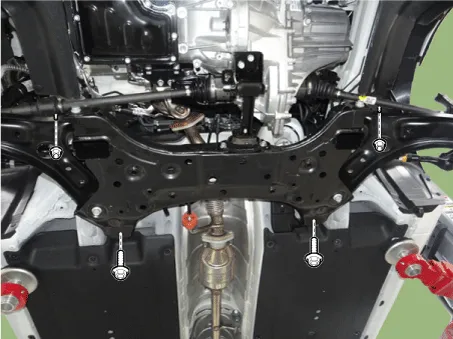

Loosen the bolts & nuts and then remove the sub frame (A).
|
| 10. |
Loosen the bolts (A) and then remove the stabilizer bar assembly.
|
| 11. |

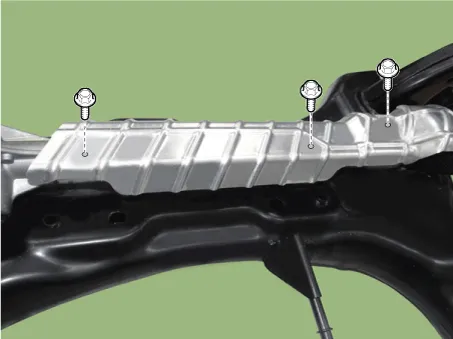

Loosne the heat protector bolts and then remove the heat protector.
|
| 12. |

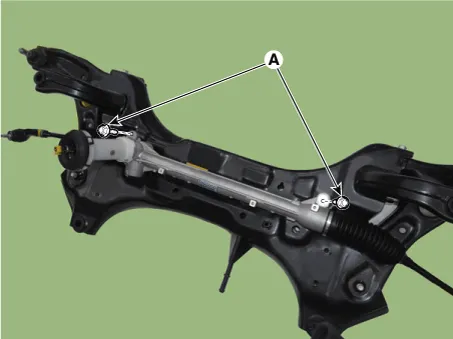

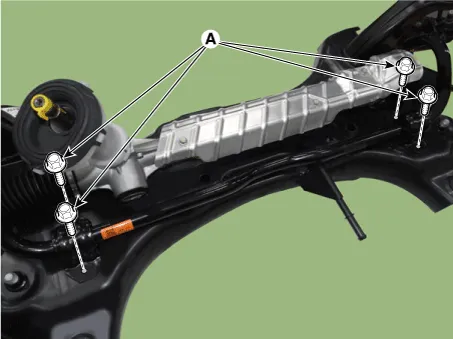

Loosen the gear box mounting bolts (A) and then remove the gear box.
|
| 13. |
Install in the reverse order of removal. |
| 14. |
Check the wheel alignment. (Refer to Tires/Wheels - "Alignment") |
