Kia Rio: Lighting System / Front Fog Lamps
Repair procedures
| Removal |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |
Remove the front bumper assembly. (Refer to Body - "Front Bumper Assembly") |
| 3. |

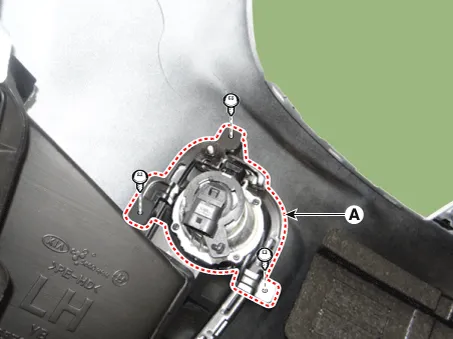

Remove the front fog lamp assembly (A) after loosening the mounting screws.
|
| Installation |
| 1. |
Install the front fog lamp assembly. |
| 2. |
Install the front bumper assembly. |
| 3. |
Connect the negative (-) battery terminal. |
