Kia Rio: Lighting System / Hazard Lamp Switch

Kia Rio 2017-2023 YB Service Manual / Body Electrical System / Lighting System / Hazard Lamp Switch

Repair procedures

Inspection
1.

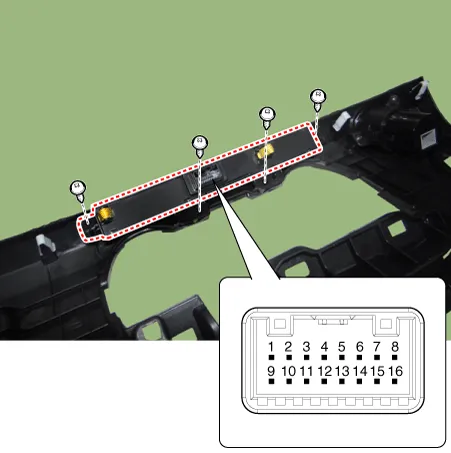

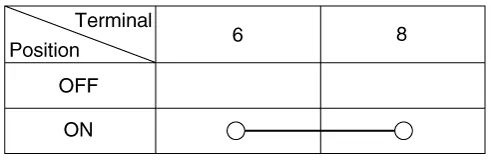

Check for continuity between terminals. If the continuity is not as specified, replace the hazard lamp switch.

No.
Description
No.
Description
1
 Battery (+)
 9
 Illumination (+)
2
 IGN1
 10
 -
3
 PAB ON
 11
 PAB OFF
4
 Rear center seat belt
 12
 Rear right seat belt
5
 Passenger air bag
 13
 Rear left seat belt
6
 Hazard mode
 14
 Door lock switch
7
 -
 15
 Door lock indicator
8
 Ground
 16
 Illumination (-)

Removal

•

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•

When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
•

Be careful to store and handle the crash pad when removing/installing because lubricant and oil can leave a stain on the trim.

1.

Disconnect the negative (-) battery terminal.
2.

Remove the crash pad center lower panel.

(Refer to Body - "Crash Pad Center Panel")

3.

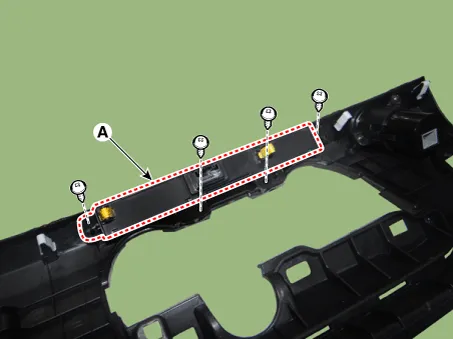

Remove the hazard warning lamp switch (A) after loosening the mounting screws.
Installation
1.

Install the hazard warning lamp switch.
2.

Install the crash pad center lower panel.
3.

Connect the negative (-) battery terminal.
