Kia Rio: Lighting System / License Lamps
Repair procedures
| Removal |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |

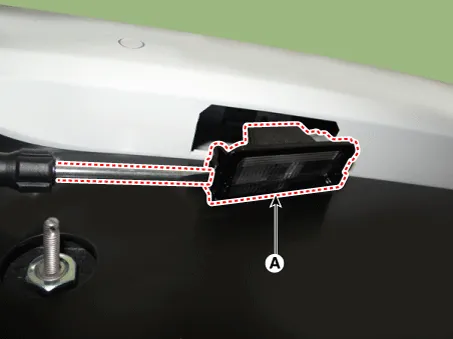

Remove the license lamp assembly (A) after pressing the locking pin.
|
| 3. |

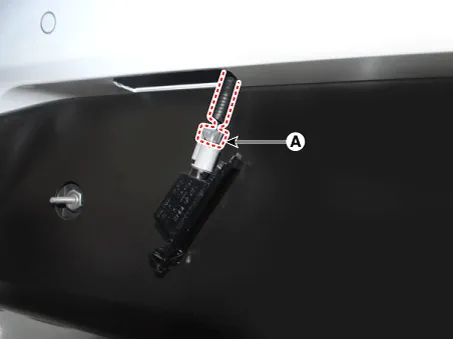

Disconnect the license lamp connector (A).
|
| 4. |

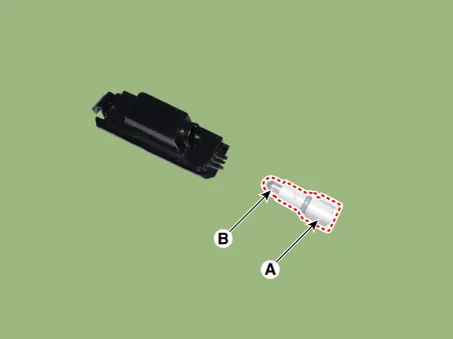

Remove the license lamp bulb (B) after removing the license lamp socket (A).
|
| Installation |
| 1. |
Install the license lamp bulb. |
| 2. |
Connect the license lamp connector. |
| 3. |
Install the license lamp assembly. |
| 4. |
Connect the negative (-) battery terminal. |
