Kia Rio: Body Electrical System / Rear Glass Defogger
Components and components location

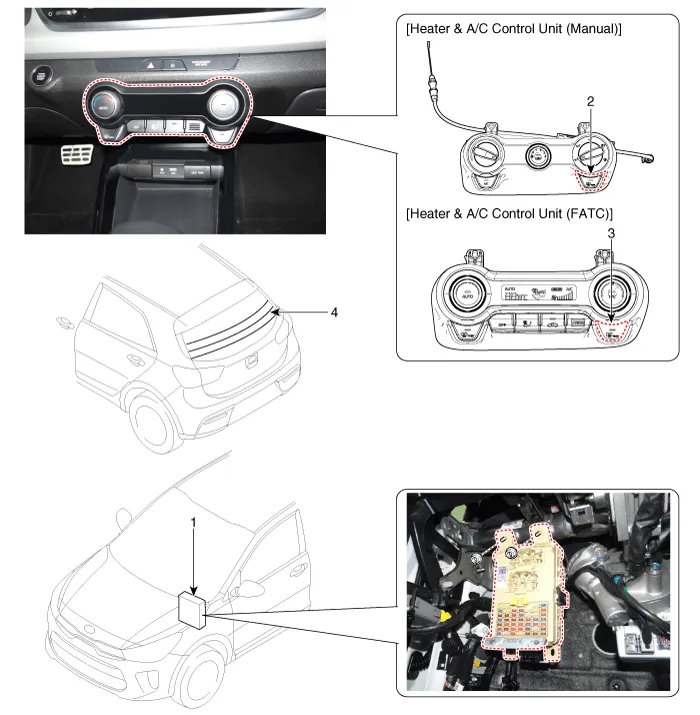

| Component Location |
| 1. Rear glass defogger
relay 2. Rear glass defogger switch (Manual Type) |
3. Rear glass defogger
switch (FATC Type) 4. Rear glass defogger |
Components and components location Components Driver Power Window Switch Connector Pin Information [Front / Rear Driver Safety - Auto Up/Down] [LHD] No.
Repair procedures Inspection • Wrap tin foil around the end of the voltmeter test lead to prevent damaging the heater line.
