Kia Rio: Body Electrical System / Sunroof
Components and components location

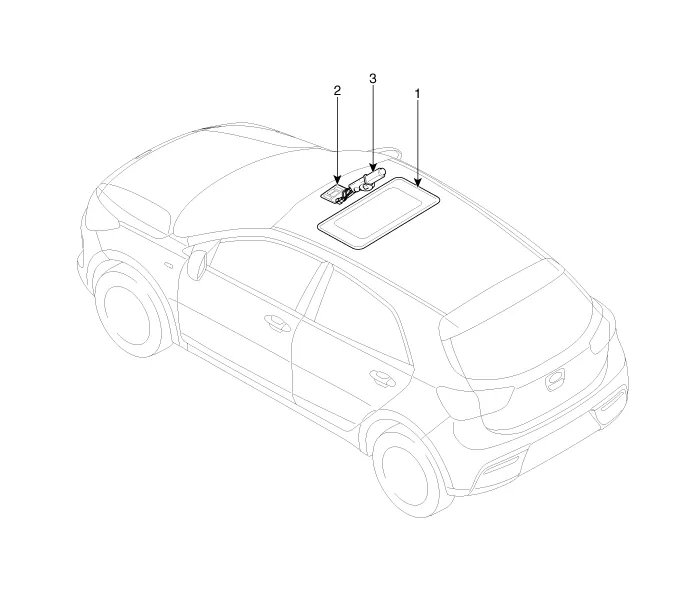

| Component Location |
| 1. Sunroof 2. Sunroof switch |
3. Sunroof motor & controller
|
Schematic diagrams

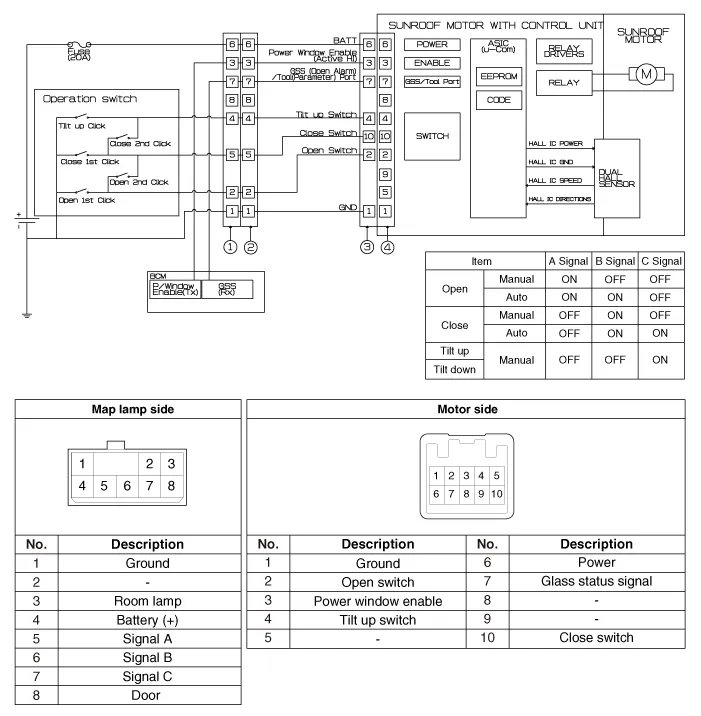

| Circuit Diagram |
Repair procedures Inspection Self Diagnosis With Scan Tool It will be able to diagnose defects of SMART KEY system with KDS/GDS quickly.
Components and components location Components Repair procedures Inspection 1. Disconnect the negative (-) battery terminal.
Other information:
Kia Rio 2017-2023 YB Service Manual: Heater & A/C Control Unit (MANUAL)
Components and components location Components Connector pin function NO. Connector A Connector B 1 Low Battery 2 Common ISG Battery 3 High Illumination (+)
Kia Rio 2017-2023 YB Service Manual: Heater & A/C Control Unit (FATC)
Components and components location Components Connector Pin Function No. Connector A Connector B 1 Battery ⁻ 2 ISG battery (+) ⁻ 3 Illumination (+) ⁻
