Kia Rio: Body (Interior and Exterior) / Roof Trim
Components and components location
| Components (1) |
| [Normal] |
| 1. Sunvisor assembly [LH] 2. Sunvisor assembly [RH] 3. Roof trim assembly [Normal] |
4. Assist handle assembly 5. Assist handle bracket |

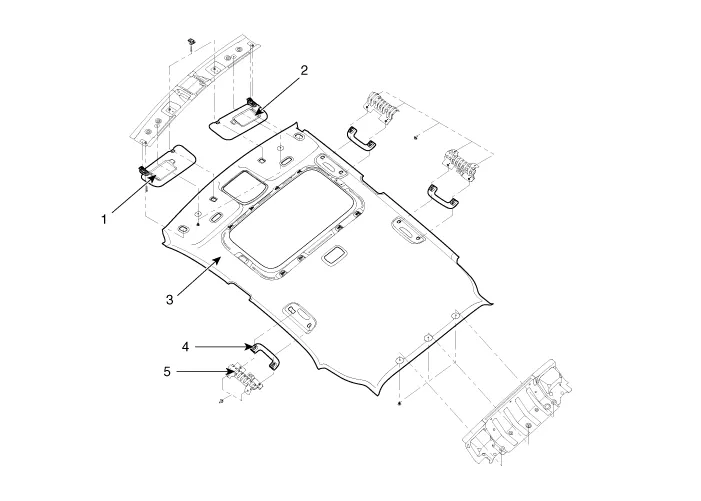

| Components (2) |
| [Sunroof] |
| 1. Sunvisor assembly [LH] 2. Sunvisor assembly [RH] 3. Roof trim assembly [Sunroof] |
4. Assist handle assembly 5. Assist handle bracket |
Components and components location Component Location 1. Rear seat belt buckle [RH] 2. Rear seat belt buckle [LH] Repair procedures Replacement When installing the belt, be careful not to damage the retractor.
Components and components location Component Location 1. Sunvisor 2. Retainer Repair procedures Replacement Put on gloves to protect your hands.
