Kia Rio: Roof Trim / Assist Handle

Components and components location

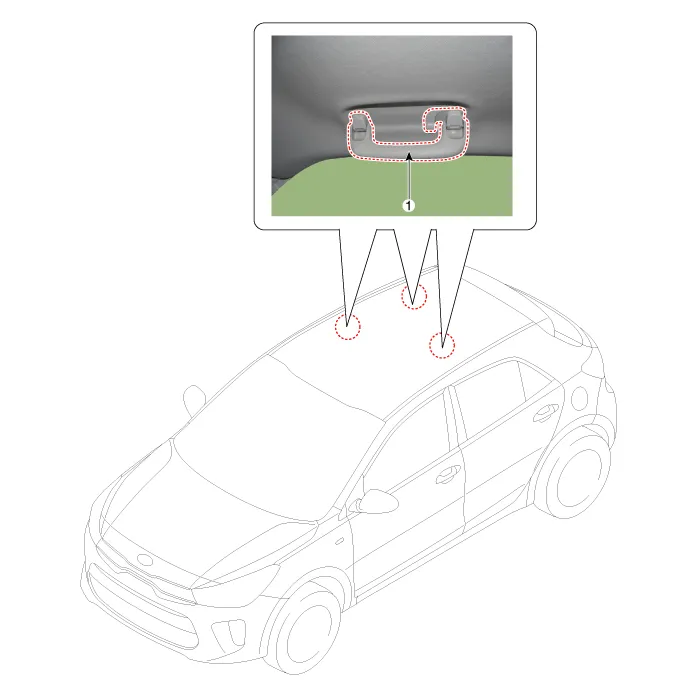

Component Location

1. Assist handle


Repair procedures

Replacement


Put on gloves to protect your hands.



Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

Take care not to bend or scratch the trim and panels.

1.

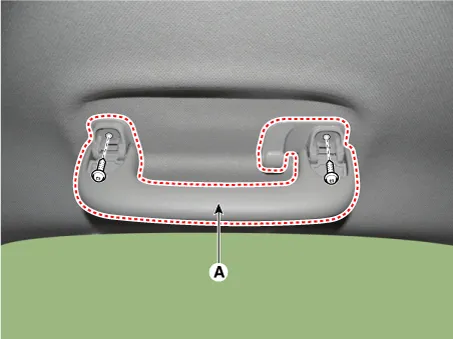

Remove the caps (A) and screws, then remove the assist handle (B).

2.

Install in the reverse order of removal.

    Components and components location Component Location 1. Sunvisor 2. Retainer Repair procedures Replacement    Put on gloves to protect your hands.

    Components and components location Component Location 1. Roof Trim Assembly Repair procedures Replacement    Put on gloves to protect your hands.
