Kia Rio: Body (Interior and Exterior) / Roof Trim
Components and components location
| Components (1) |

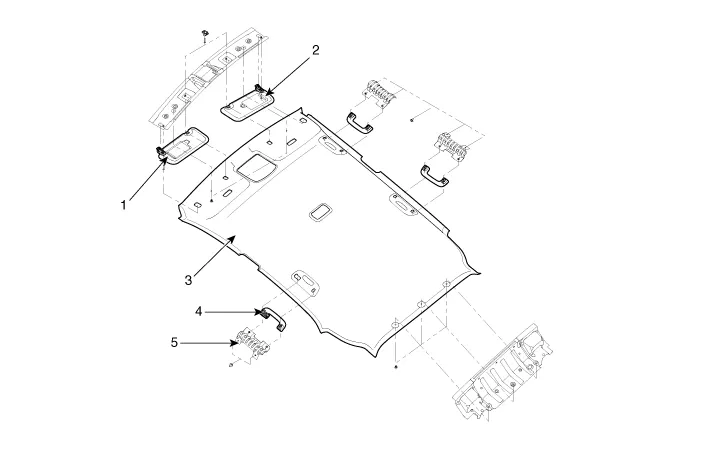

| [Normal] |
| 1. Sunvisor assembly [LH] 2. Sunvisor assembly [RH] 3. Roof trim assembly [Normal] |
4. Assist handle assembly 5. Assist handle bracket |
| Components (2) |

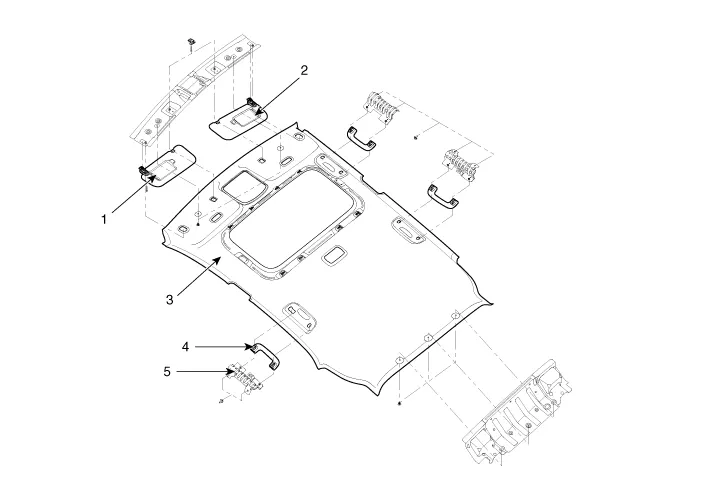

| [Sunroof] |
| 1. Sunvisor assembly [LH] 2. Sunvisor assembly [RH] 3. Roof trim assembly [Sunroof] |
4. Assist handle assembly 5. Assist handle bracket |
Components and components location Component Location 1. Rear seat belt buckle [RH] 2. Rear seat belt buckle [LH] Repair procedures Replacement When installing the belt, be careful not to damage the retractor.
Components and components location Component Location 1. Sunvisor 2. Retainer Repair procedures Replacement Put on gloves to protect your hands.
Other information:
Kia Rio 2017-2023 YB Service Manual: Seat Heater
Components and components location Component Location 1. Seat heater unit (Passenger seat only) 2. Front seat back heater 3. Front seat cushion heater Schematic diagrams Circuit Diagram Repair procedures Inspection 1.
Kia Rio 2017-2023 YB Service Manual: Sunroof Motor
Repair procedures Inspection 1. Disconnect the negative (-) battery terminal. 2. Remove the roof trim assembly. (Refer to Body - "Roof Trim Assembly") 3. Remove the glass motor (A) after loosening the mounting screws.
