Kia Rio: Rear Seat Belt / Rear Seat Belt Buckle

Components and components location

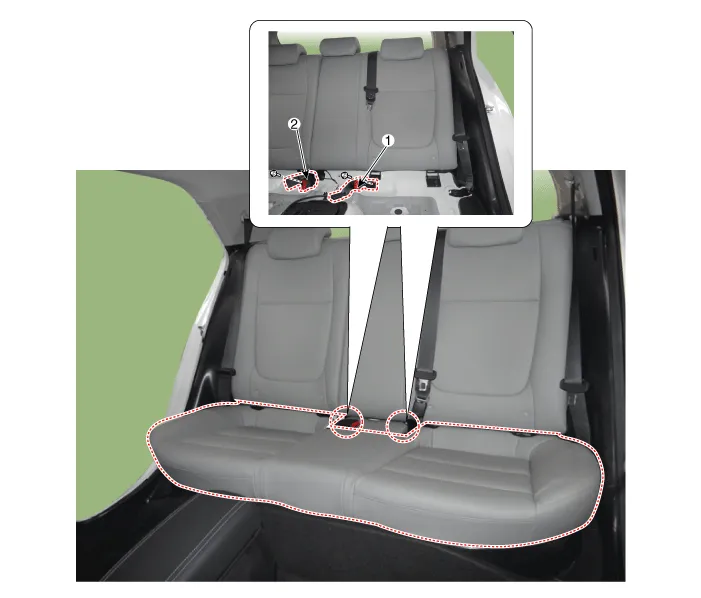

Component Location

1. Rear seat belt buckle [RH]
2. Rear seat belt buckle [LH]

Repair procedures

Replacement


When installing the belt, be careful not to damage the retractor.

1.

Remove the rear seat cushion assembly.

(Refer to Rear Seat - "Rear Seat Assembly")

2.

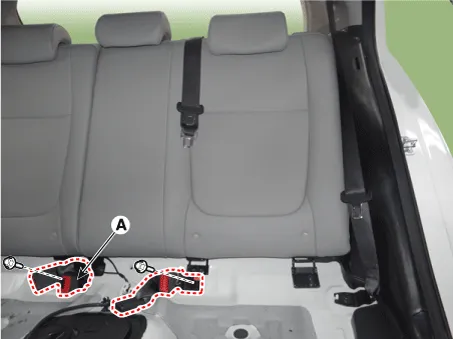

Remove the rear seat belt buckle (A) after loosening the mounting bolt.

Tightening torque :

39.2 - 53.9 N·m (4.0 - 5.5 kgf·m, 28.9 - 39.8 lb·ft)

3.

Install in the reverse order of removal.
