Kia Rio: Body (Interior and Exterior) / Trunk Lid
Repair procedures
| Adjustment |
| (5Door) |
| 1. |

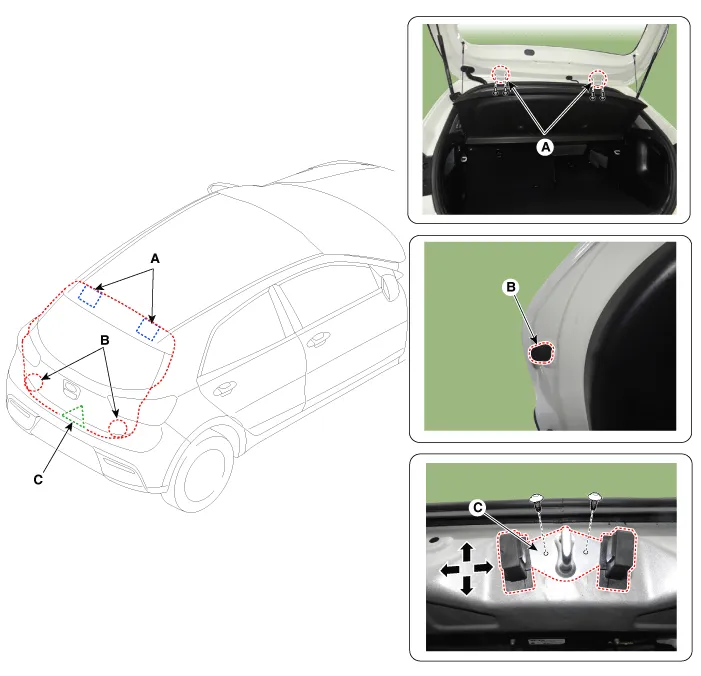

After loosening the tailgate hinge (A) mounting bolts, adjust the tailgate by moving it up and down, or right and left. |
| 2. |
Adjust the tail gate height by turning the tailgate overslam bumpers (B). |
| 3. |
After loosening the tailgate striker (C) mounting bolts, adjust the tailgate striker by moving it up and down, or right and left.
|
Repair procedures Replacement Do not apply sealant to the body. 1.
Components and components location Component Location (4Door) 1. Trunk lid assembly Repair procedures Replacement (4Door) • Wear gloves to protect hands from injury.
