Kia Rio: Trunk Lid / Trunk Lid Weatherstrip
Repair procedures
| Replacement |
| (5Door) |
Be careful as the tailgate may fall down on people when the lifts are removed. Have a helper hold the tailgate open, or use a secure method to hold it open. |
| 1. |

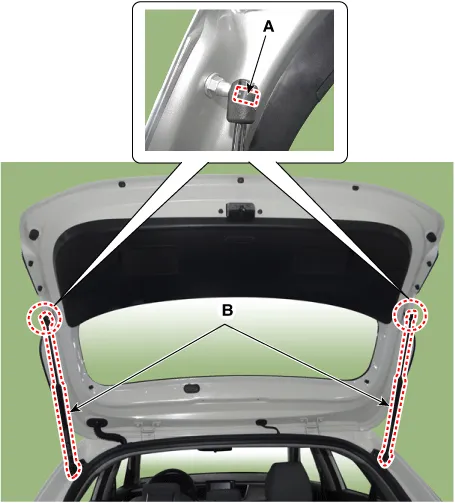

Lift up slightly the socket clips (A) of both ends on the lifter (B), and then remove the lifter from the bracket by using a screwdriver.
|
| 2. |
Push the socket of the lifter into the bracket for installation.
|
