Kia Rio: Trunk Lid / Trunk Lid Trim

Kia Rio 2017-2023 YB Service Manual / Body (Interior and Exterior) / Trunk Lid / Trunk Lid Trim

Components and components location

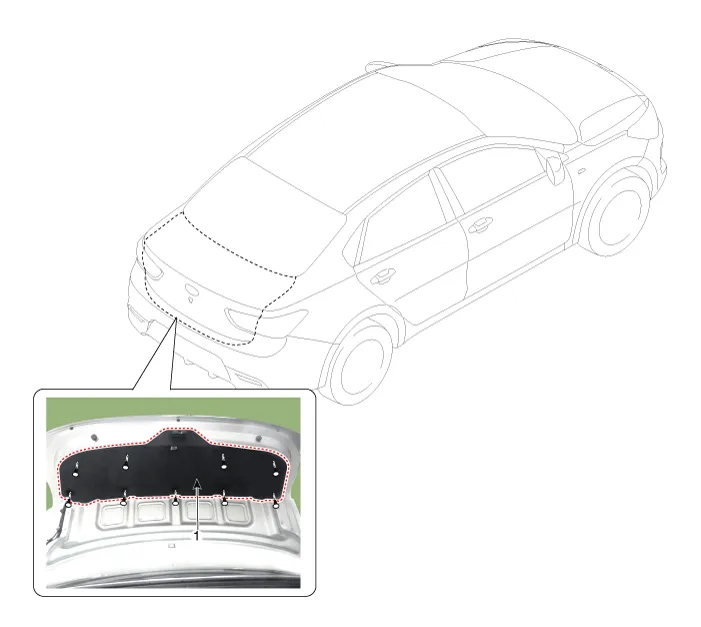

Component Location

(4Door)

1. Trunk lid trim

Repair procedures

Replacement

(4Door)

•	Put on gloves to protect your hands.

•	When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

•	Take care not to scratch the body surface.

1.	Detach the clips, then remove the trunk lid trim (A).

Install in the reverse order of removal.

•	Replace any damaged clips.
