Kia Rio: Trunk Lid / Trunk Lid Assembly

Kia Rio 2017-2023 YB Service Manual / Body (Interior and Exterior) / Trunk Lid / Trunk Lid Assembly

Components and components location

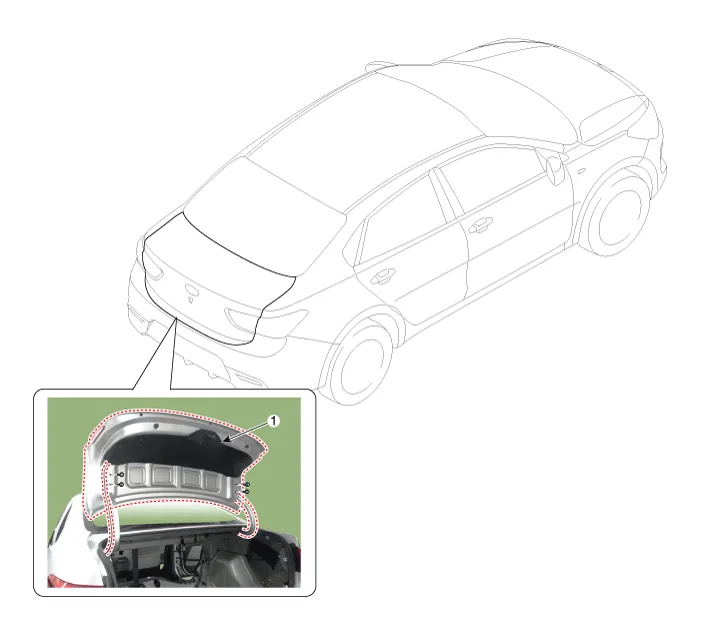

Component Location

(4Door)

1. Trunk lid assembly

Repair procedures

Replacement

(4Door)

•	Wear gloves to protect hands from injury.

•	When removing and installing the trunk lid, an assistant is necessary.

1.	Remove the trunk lid trim. (Refer to Trunk Lid - "Trunk Lid Trim")

2.	Disconnect the connectors and trunk lid wiring harness (A).

After loosening the mounting bolts, then remove the trunk lid assembly (B).

Tightening torque:

7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 lb·ft)

Install in the reverse order of removal.

•	Make sure the trunk lid locks/unlocks and opens/closes properly.

•	Adjust the trunk lid alignment.

•	Make sure the connectors are connected in properly.

•	Replace any damaged clips.
