| Replacement |
Do not apply sealant to the body. |
| 1. |

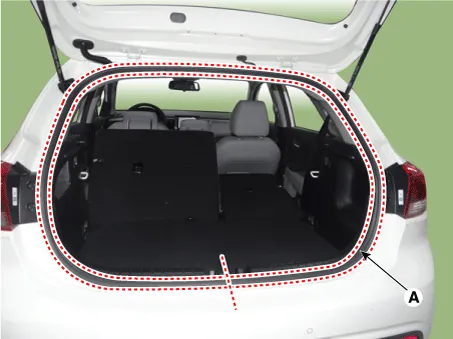

Remove the tailgate weatherstrip (A).
|
| 2. |
Install in the reverse order of removal.
|
Repair procedures Replacement (5Door) Be careful as the tailgate may fall down on people when the lifts are removed.
Repair procedures Adjustment (5Door) 1. After loosening the tailgate hinge (A) mounting bolts, adjust the tailgate by moving it up and down, or right and left.
Repair procedures Inspection 1. In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (KDS/GDS). The diagnostic system (KDS/GDS) provides the following information. (1) Self diagnosis : Checking failure and code number (DTC)
Components and components location Components Connector Pin Function No. Connector A Connector B 1 Battery ⁻ 2 ISG battery (+) ⁻ 3 Illumination (+) ⁻
