Kia Rio: Body (Interior and Exterior) / Tailgate
Repair procedures
| Adjustment |
| (5Door) |

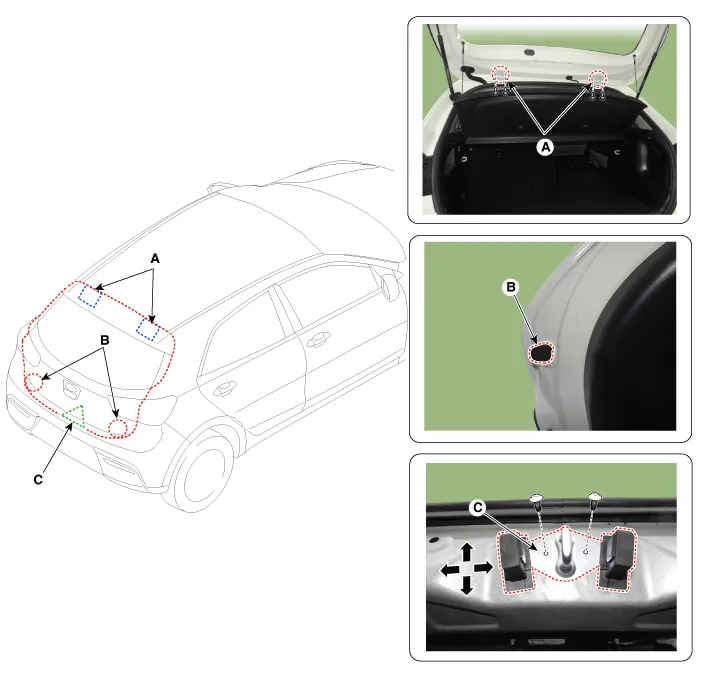

| 1. |
After loosening the tailgate hinge (A) mounting bolts, adjust the tailgate by moving it up and down, or right and left. |
| 2. |
Adjust the tail gate height by turning the tailgate overslam bumpers (B). |
| 3. |
After loosening the tailgate striker (C) mounting bolts, adjust the tailgate striker by moving it up and down, or right and left.
|
