Kia Rio: Body (Interior and Exterior) / Floor Console

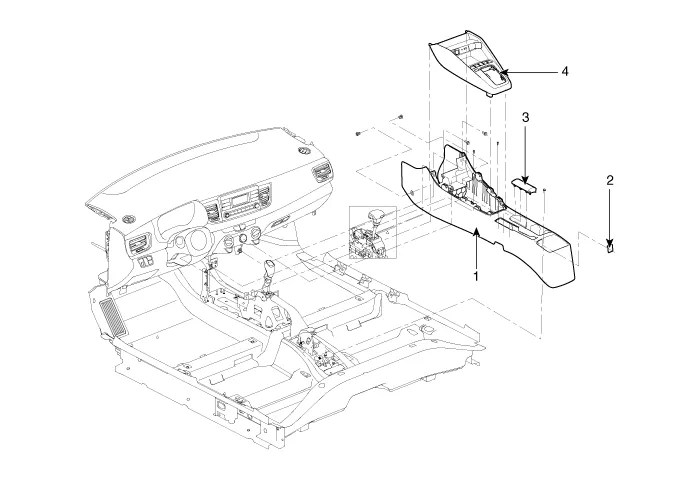

Components and components location
| Components |
| [DLX] |
| 1. Floor console assembly 2. Rear console cover 3. Console armrest |
4. Parking brake cover 5. Front console upper cover |
| [STD] |
| 1. Floor console assembly 2. Rear MTG cover |
3. Parking brake cover 4. Front console upper cover |
Repair procedures Replacement Put on gloves to protect your hands. • Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Components and components location Component Location 1. Floor console assembly Repair procedures Replacement Put on gloves to protect your hands.
