Kia Rio: Floor Console / Rear Console Cover

Kia Rio 2017-2023 YB Service Manual / Body (Interior and Exterior) / Floor Console / Rear Console Cover

Components and components location

Component Location

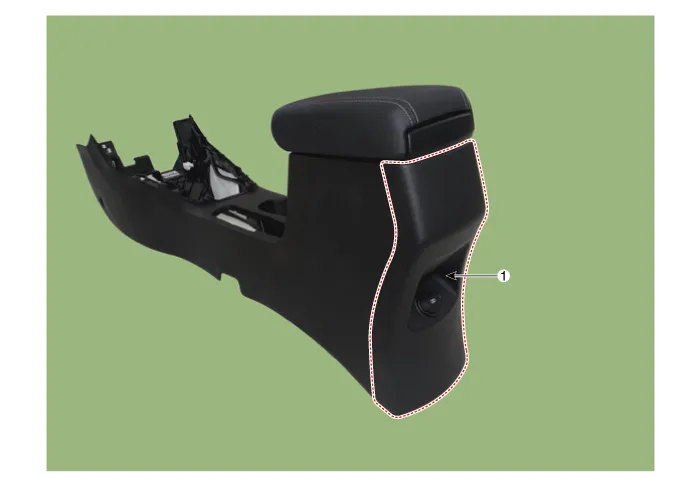

1. Rear console cover


Repair procedures

Replacement


Put on gloves to protect your hands.


•

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
•

Be careful not to bend or scratch the trim and panels.
1.

Remove the floor console assembly.

(Refer to Floor Console - "Floor Console Assembly")

2.

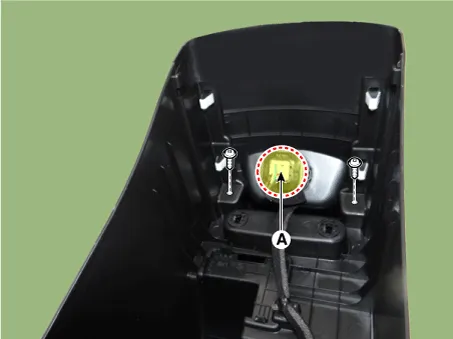

Flip over the console and disconnect the rear console connector (A) after loosening the screws.
3.

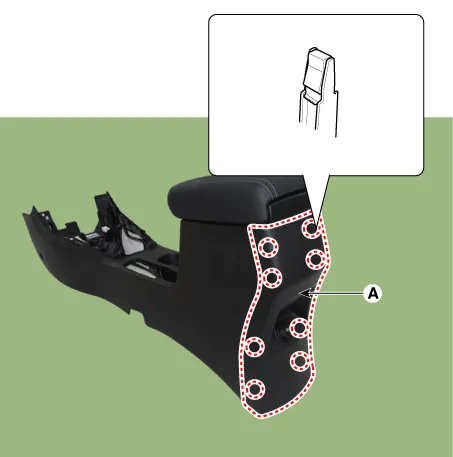

Using a remover, remove the rear console cover (A).
4.

Install in the reverse order of removal.


•

Make sure the connector is connected properly.
•

Replace any damaged clips.
