Kia Rio: Lighting System / Turn Signal Lamp
Repair procedures
| Removal |
| Door Mirror Turn Signal Lamp |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |

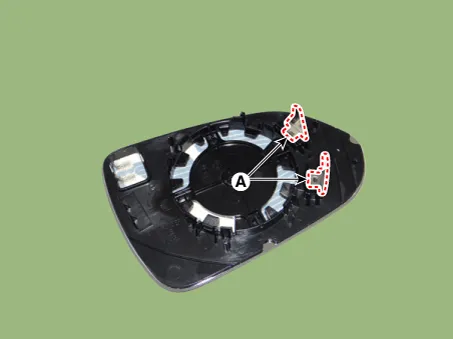

Remove the mirror (A) from the mirror holder.
|
| 3. |

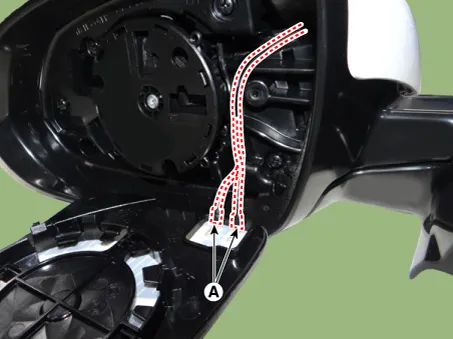

Disconnect the heating connectors (A) from the mirror.
|
| 4. |

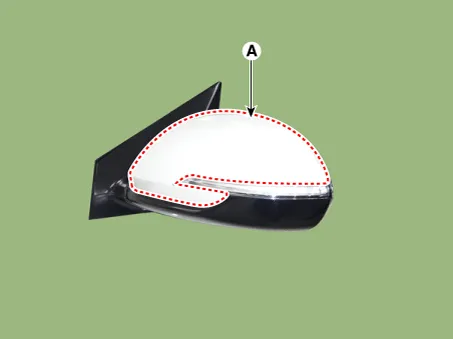

Remove the door mirror cover (A) after separating the mounting clips.
|
| 5. |

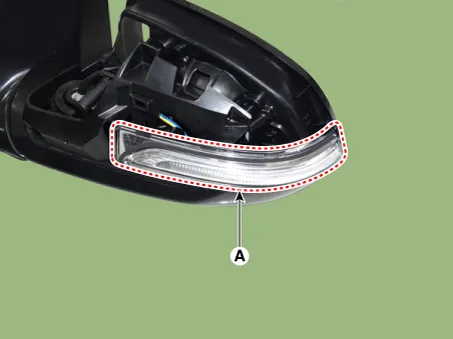

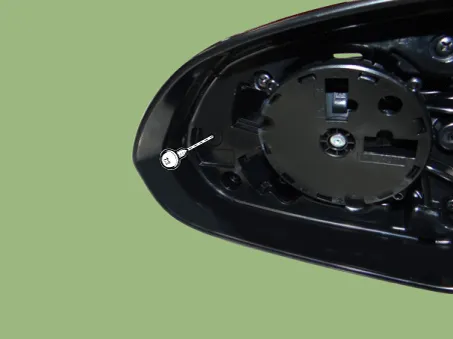

Remove the door mirror turn signal lamp (A) after loosening the screw.
|
| 6. |

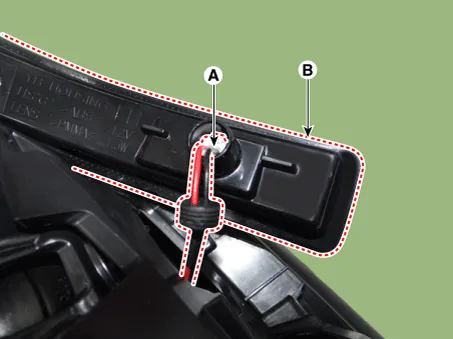

Disconnect the connector (A) from the door mirror turn signal lamp (B).
|
| Installation |
| 1. |
Install the door mirror turn signal lamp. |
| 2. |
Install the door mirror cover. |
| 3. |
Install the door mirror. |
| 4. |
Connect the negative (-) battery terminal. |
