Kia Rio: Fuel Delivery System / Filler-Neck Assembly

Kia Rio 2017-2023 YB Service Manual / Engine Control / Fuel System / Fuel Delivery System / Filler-Neck Assembly

Repair procedures

Removal
1.

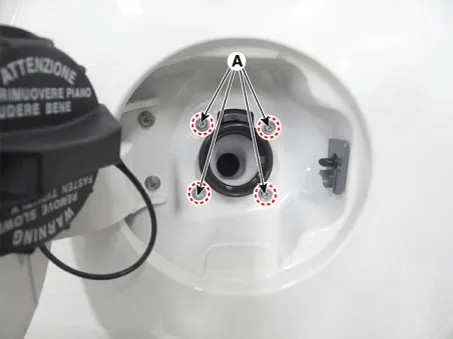

Open the fuel filler door and then remove the filler-neck mounting bolts (A).

Filler-neck assembly mounting bolt:

7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)

2.

Left the vehice.

3.

Remove the rear-LH wheel, tire, and the inner wheel house.

4.

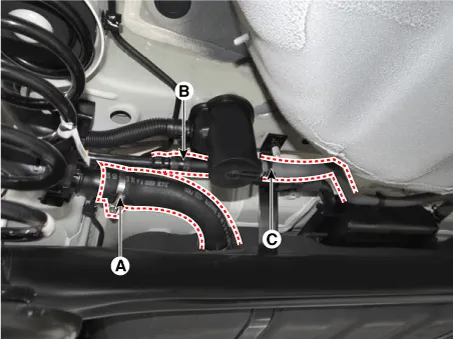

Disconnect the fuel filler hose (A), the leveling hose (B) and the ventilation hose (C).

5.

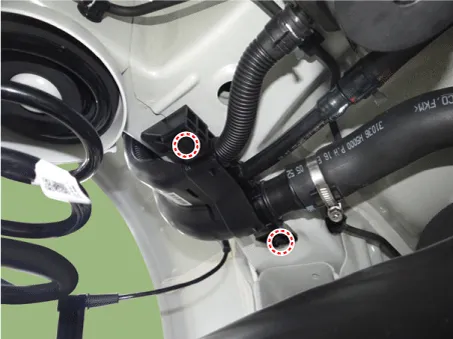

Remove the filler-neck assembly from the vehicle after removing the bracket intallation bolt (A).

Filler-neck assembly bracket mounting bolt:

7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)

Installation
1.

Installation is reverse of removal.
