Kia Rio: Fuel Delivery System / Fuel Line
Repair procedures
| Removal |
| 1. |
Release the residual pressure in fuel line. (Reter to Fuel Delivery System - "Release Residual Pressure in Fuel Line") |
| 2. |
Switch "OFF" the ignition and disconnect the negative (-) battery terminal. |
| 3. |
Remove the air cleaner. (Refer to Engine Mechanical System - "Air Cleaner") |
| 4. |

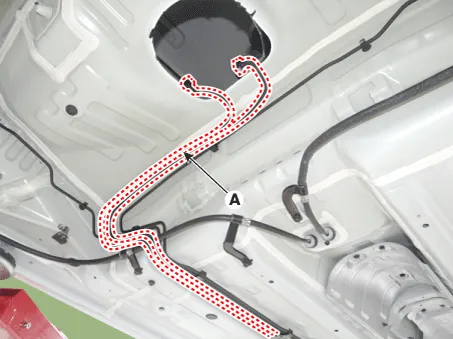

Remove the installation nuts (B), and then disconnect the fuel feed tube (A).
|
| 5. |

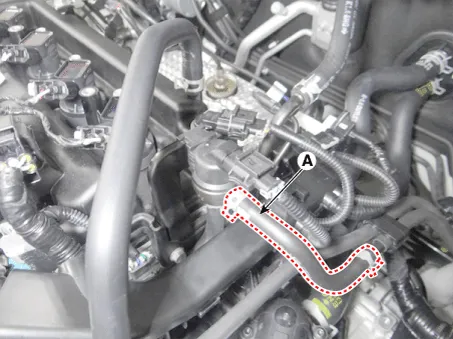

Disconnect the vapor hose (A) which is connected from the PCSV.
|
| 6. |
Lift the vehicle. |
| 7. |
Remove the fuel tank. (Refer to Fuel Delivery System - "Fuel Tank") |
| 8. |
Remove the under cover [LH] after loosening the mounting bolts and nuts. |
| 9. |

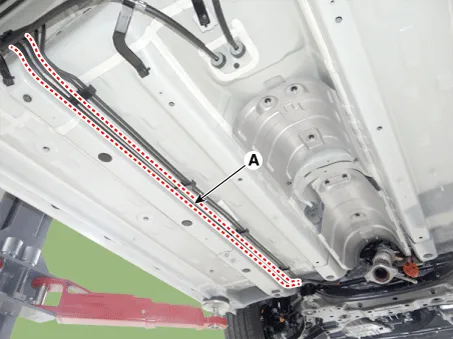

Remove the fuel line (A) after loosening the mounting bolts and bracket.
|
Repair procedures Removal 1. Open the fuel filler door and then remove the filler-neck mounting bolts (A). Filler-neck assembly mounting bolt: 7.
Repair procedures Removal 1. Release the residual pressure in fuel line. (Refer to Fuel Delivery System - "Release Residual Pressure in Fuel Line") When removing the fuel pump relay, a Diagnostic Trouble Code (DTC) may occur.
