Kia Rio: Crash Pad / Center Fascia Panel

Kia Rio 2017-2023 YB Service Manual / Body (Interior and Exterior) / Crash Pad / Center Fascia Panel

Components and components location

Component Location

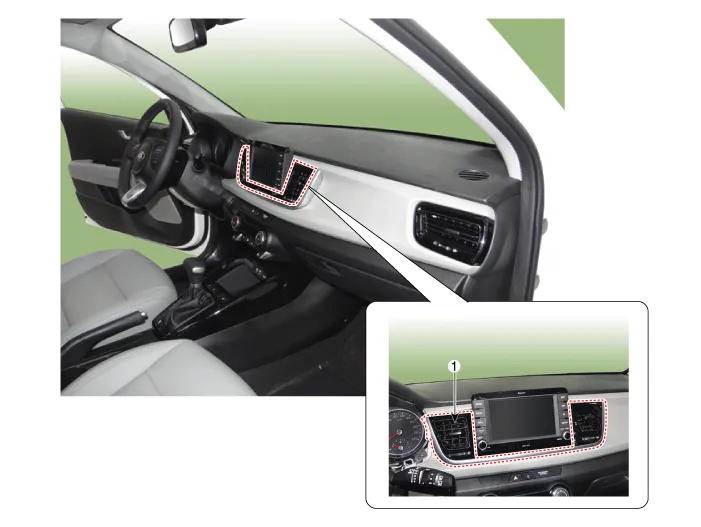

1. Center fascia panel assembly

Repair procedures

Replacement


Put on gloves to protect your hands.


•

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•

Be careful not to bend or scratch the trim and panels.

1.

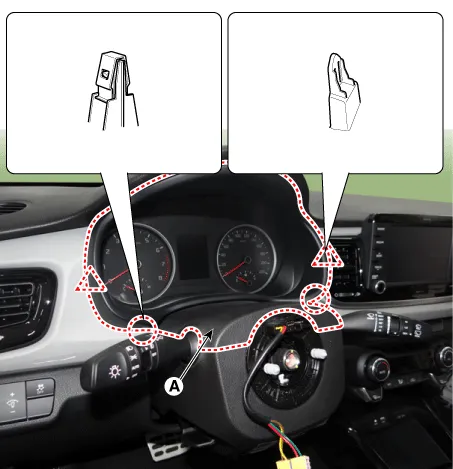

Remove the cluster fascia panel (A) by using a remover.

2.

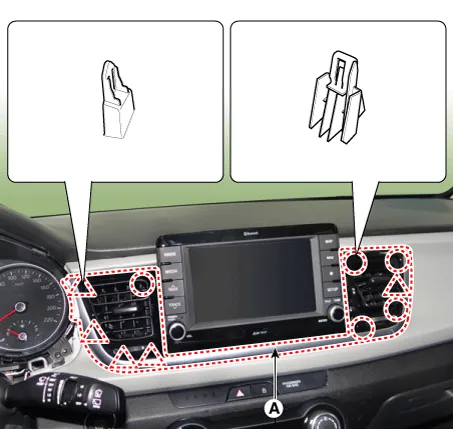

Remove the center fascia panel (A) by using a remover.

3.

Install in the reverse order of removal.



Replace any damaged clips.

    Components and components location Component Location 1. Cluster fascia panel Repair procedures Replacement    Put on gloves to protect your hands.

    Components and components location Component Location 1. Crash pad passenger side panel assembly Repair procedures Replacement    Put on gloves to protect your hands.
