Kia Rio: Blower / Blower Unit

Kia Rio 2017-2023 YB Service Manual / Heating,Ventilation, Air Conditioning / Blower / Blower Unit

Components and components location

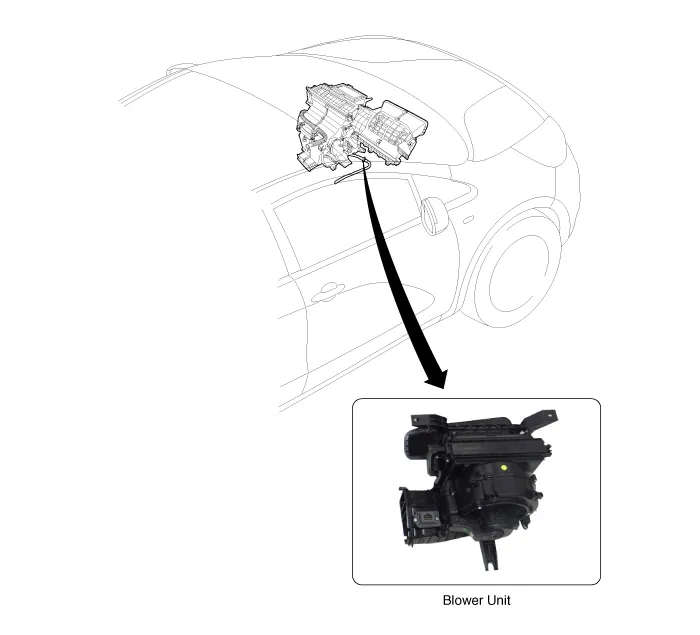

Component Location

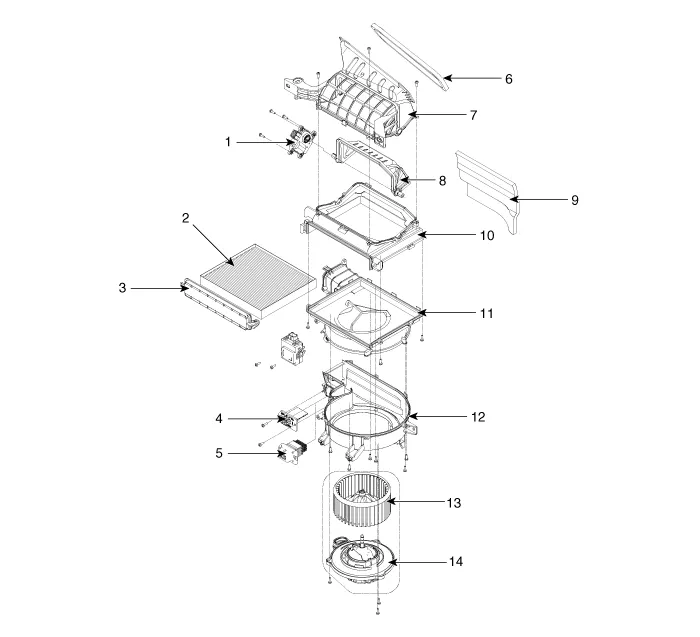

Components

1. Intake actuator
2. Air filter
3. Air filter cover
4. Resistor
5. Mosfet
6. Intake seal
7. Intake upper cover

8. Intake door
9. NVH pad
10. Intake lower cover
11. Blower upper cover
12. Blower lower cover
13. Blower fan
14. Blower motor

Repair procedures

Replacement

1.	Remove the heater & blow. (Refer to Heater - "Heater Unit")

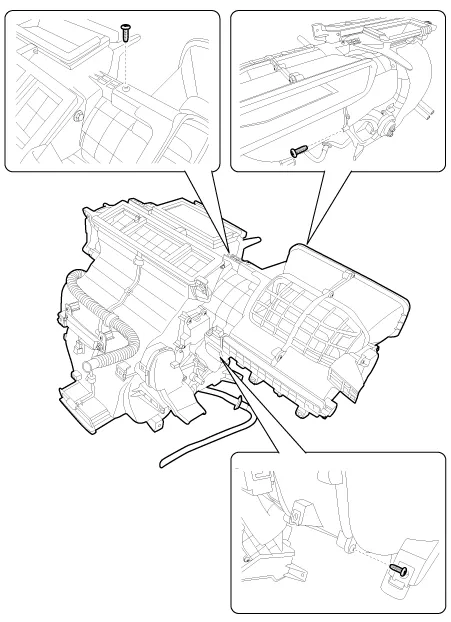

Separate the blower unit from the heater unit after loosening the screws.

Make sure that there is no air leaking out of the blower and duct joints.

3.	Installation is the reverse order of removal.
