Kia Rio: Crash Pad / Cluster Fascia Panel

Kia Rio 2017-2023 YB Service Manual / Body (Interior and Exterior) / Crash Pad / Cluster Fascia Panel

Components and components location

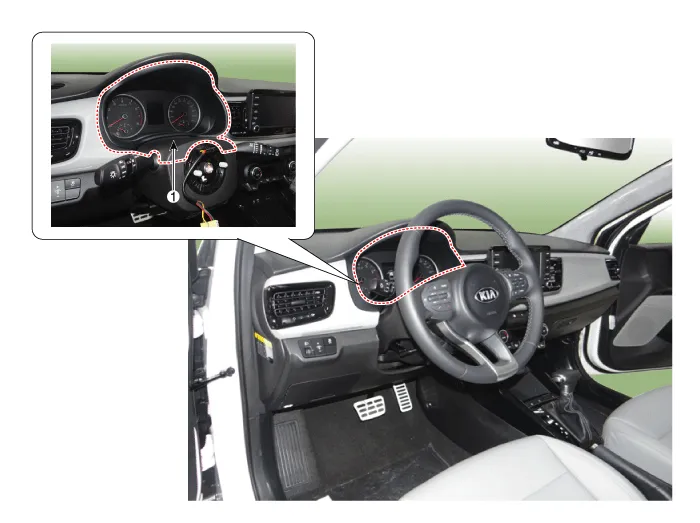

Component Location

1. Cluster fascia panel


Repair procedures

Replacement


Put on gloves to protect your hands.


•

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•

Be careful not to bend or scratch the trim and panels.

1.

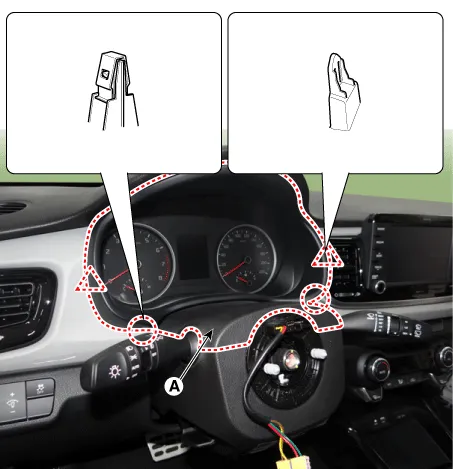

Remove the cluster fascia panel (A) by using a remover.

2.

Install in the reverse order of removal.



Replace any damaged clips.
