Kia Rio: Body Electrical System / Audio

Kia Rio 2017-2023 YB Service Manual / Body Electrical System / Audio

Specifications

Items	Specifications
Model	Radio/MP3 (A Type)	Radio/MP3/Bluetooth (B Type)
Power supply	DC 14.4 V
Parasitic current	Max. 1mA (Head unit only)
Antenna	80PF 75Ω
Tuning type	PLL SYNTHESIZED TUNING

Components and components location

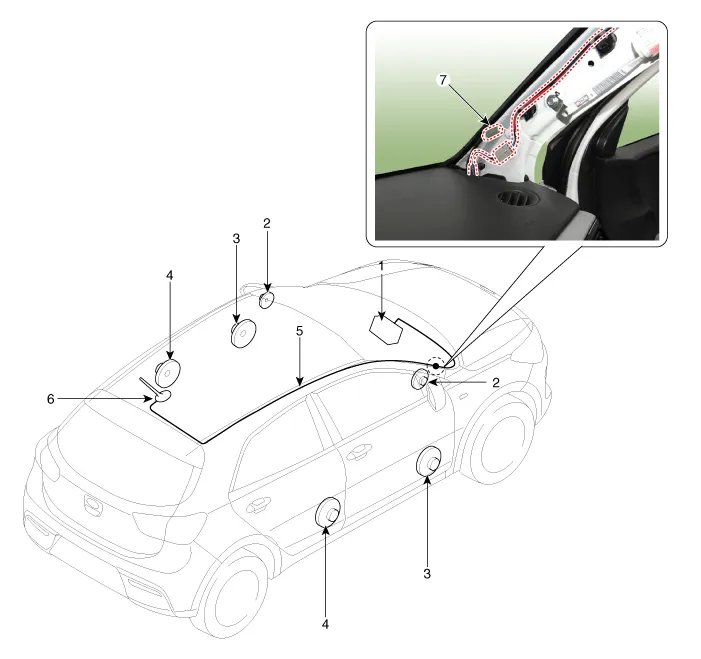

Component Location

1. Audio unit
2. Tweeter speaker
3. Front door speaker
4. Rear door speaker

5. Antenna feeder cable
6. Roof antenna (AM/FM)
7. Antenna cable connector
