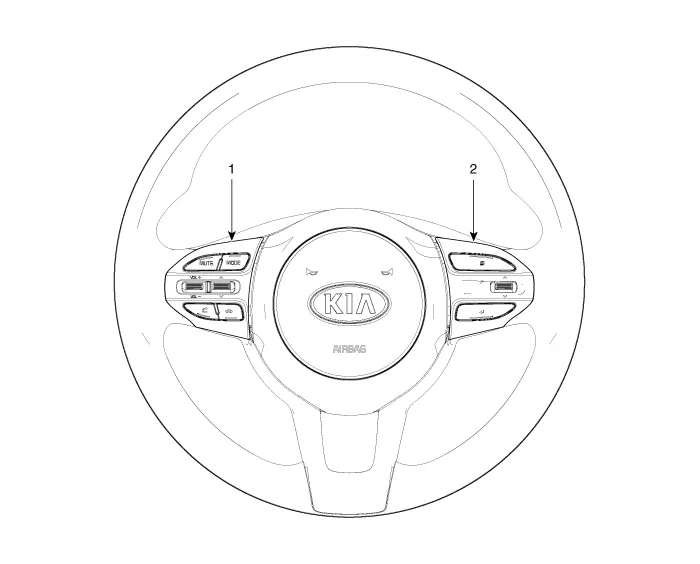

| Components |

| 1. Left Remote Control Switch
(Audio + Hands free + Voice) |
2. Right Remote Control Switch
(Cruise+Trip Computer) |

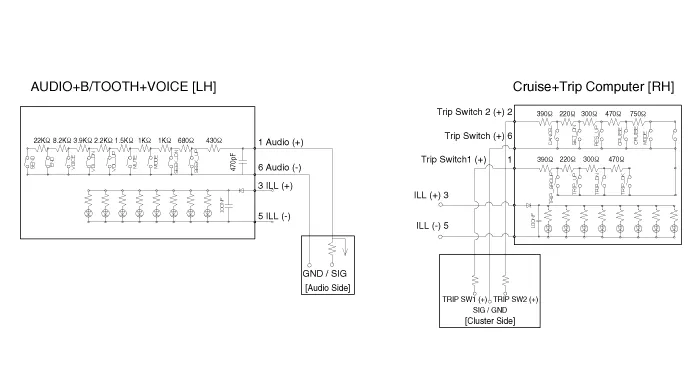

| Circuit Diagram |

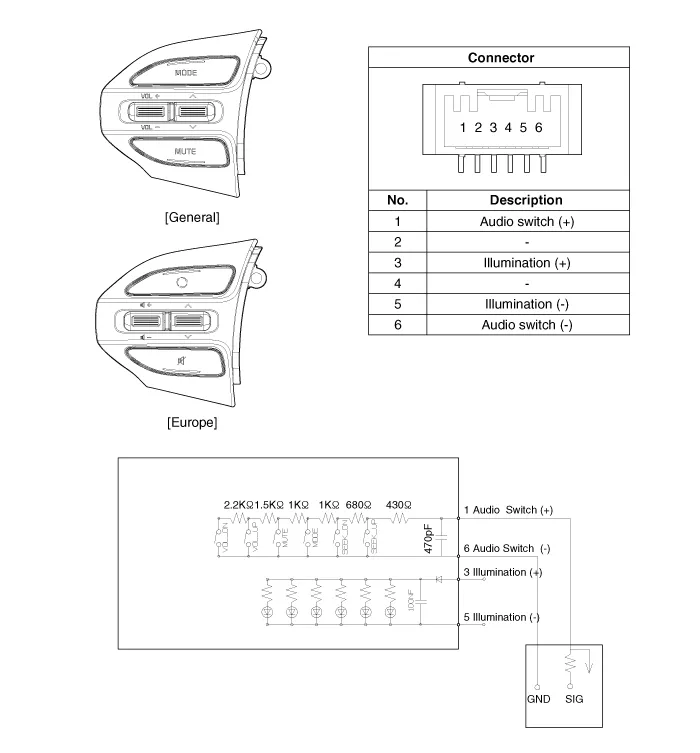

| [Audio] |

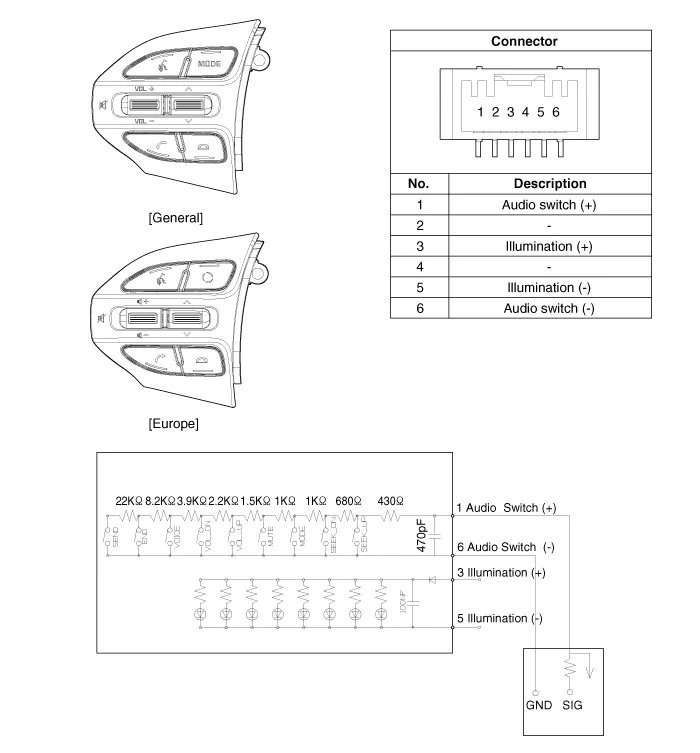

| [Audio + Bluetooth] |

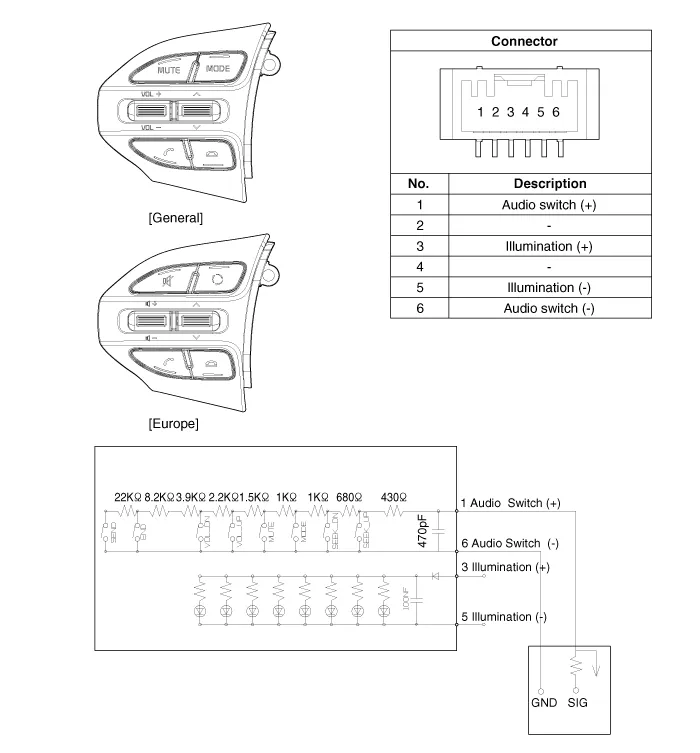

| [Audio + Bluetooth + Voice] |

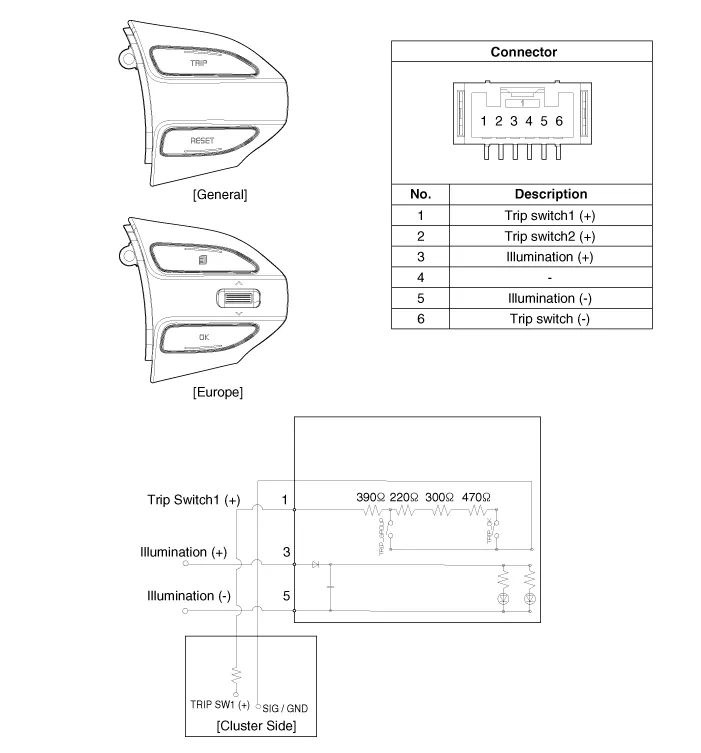

| [Trip] |

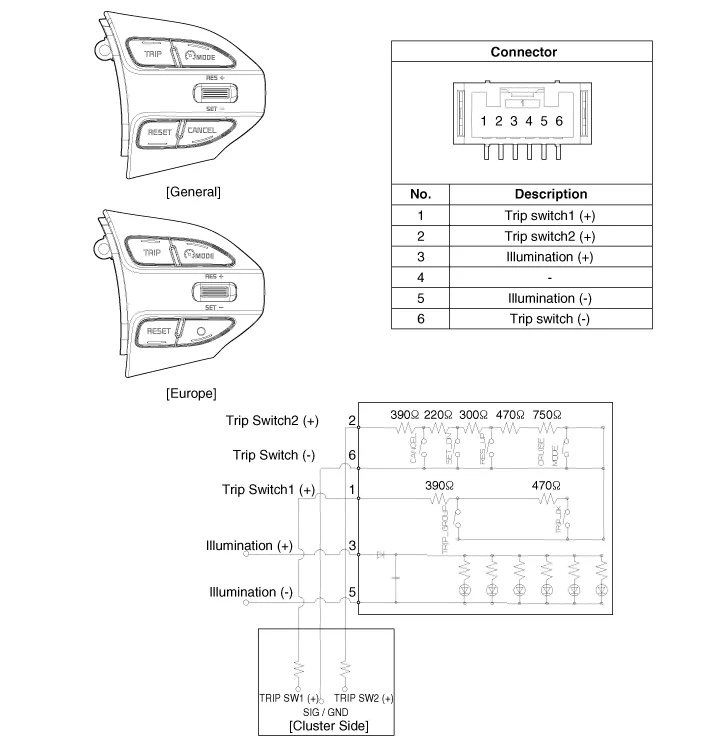

| [Trip + ACC (2 Button)] |

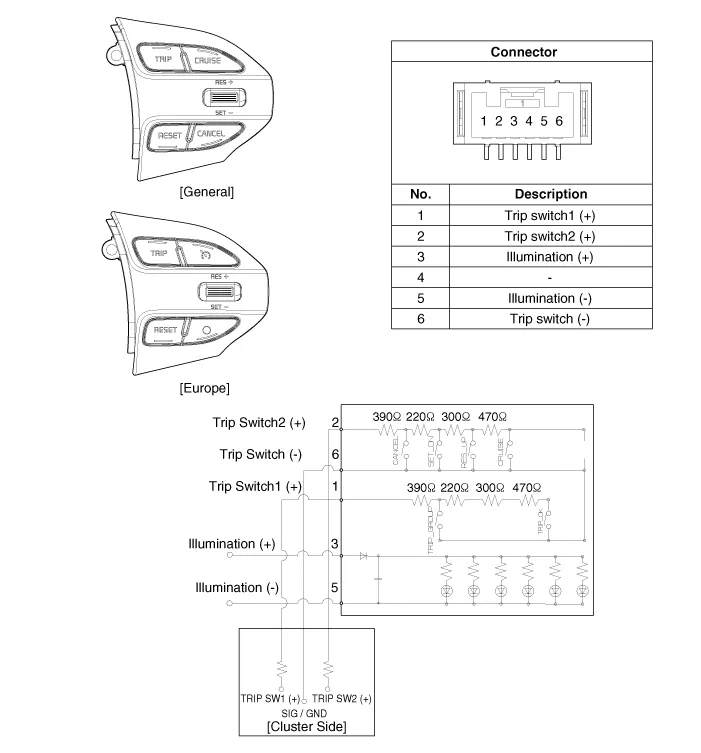

| [Trip + ACC + SLD (2 Button)] |

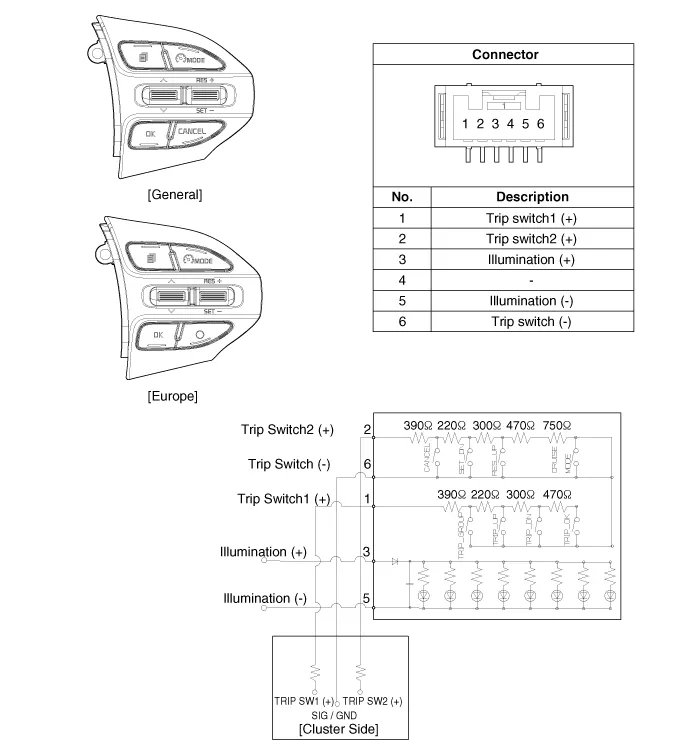

| [Trip + ACC (4 Button)] |

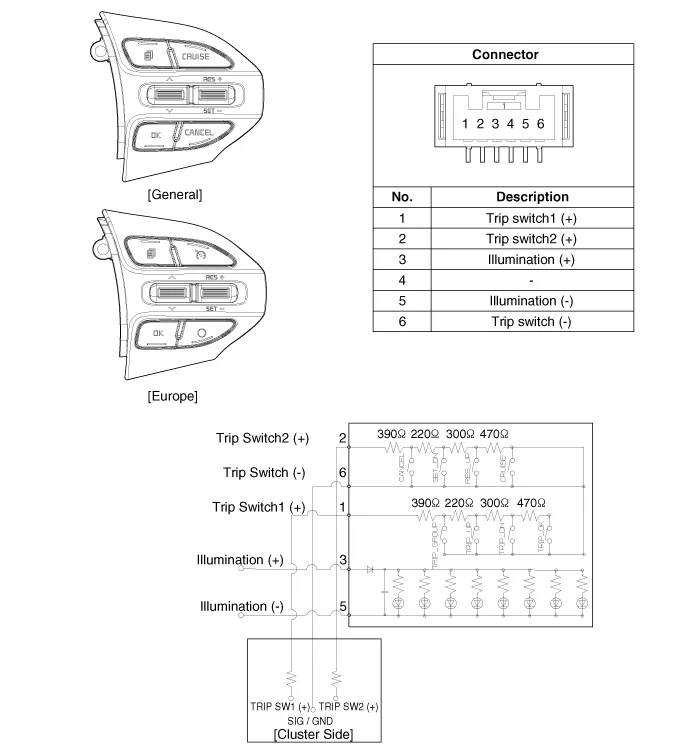

| [Trip + ACC + SLD (4 Button)] |

| Removal |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |
Remove the steering wheel assembly. (Refer to Steering System - "Steering Wheel") |
| 3. |

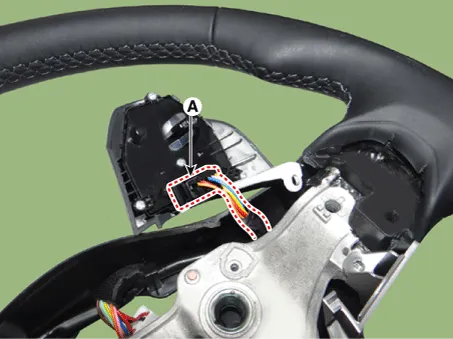

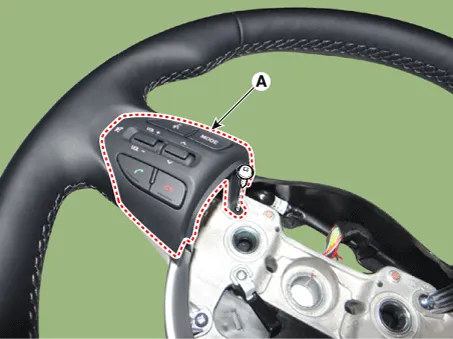

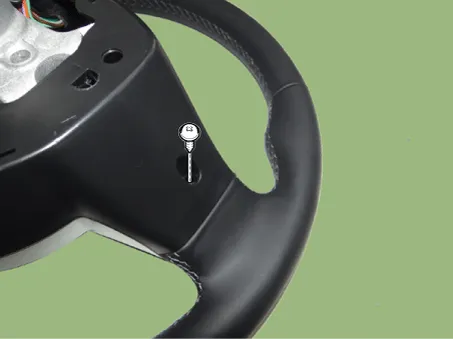

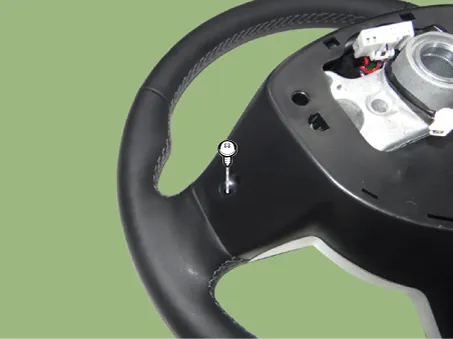

Remove the steering wheel remote control (A) after loosening the mounting screws. [LH]
[RH]
|
| 4. |

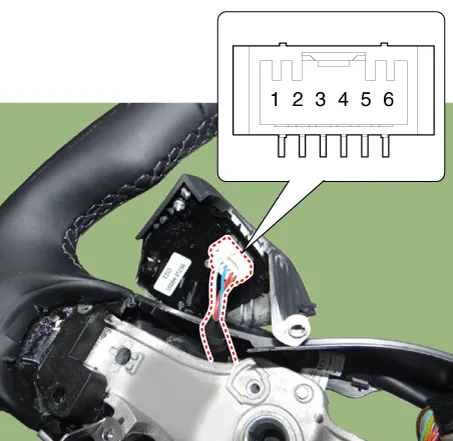

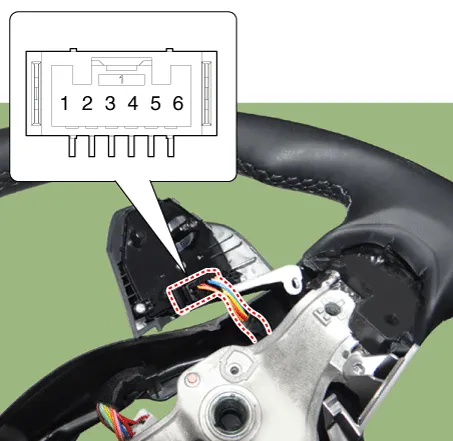

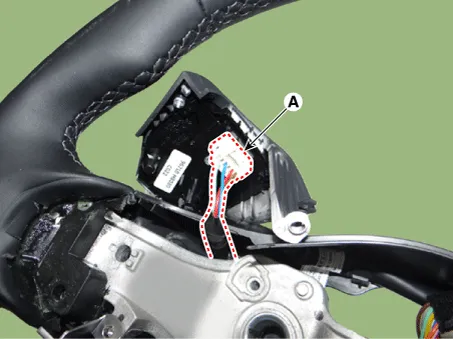

Disconnect the steering wheel remote control connector (A). [LH]
[RH]
|
| Installation |
| 1. |
Connect the steering wheel remote control connector. |
| 2. |
Install the steering wheel remote control. |
| 3. |
Install the steering wheel and driver airbag module. |
| 4. |
Connect the negative (-) battery terminal. |
| Inspection |
| 1. |
Check the resistance between terminals in each switch position (LH).
[LH : Audio + Hands free + Voice]
|
| 2. |
Check for resistance between terminals in each switch position (RH).
[RH : Cruise + Trip]
|
