Kia Rio: Instrument cluster / Transmission Shift Indicator
Intelligent Variable Transmission (if equipped)

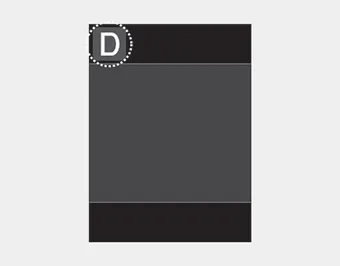

This indicator displays which intelligent variable transmission shift lever is selected.
- Park :P
- Reverse : R
- Neutral : N
- Drive :D
- Manual Mode : 1, 2, 3, 4, 5, 6, 7, 8
Manual Transmission shift indicator
This indicator informs which gear is desired while driving to save fuel.
- Shifting up : ▲2, ▲3, ▲4, ▲5, ▲6
- Shifting down : ▼3, ▼4, ▼5
For example

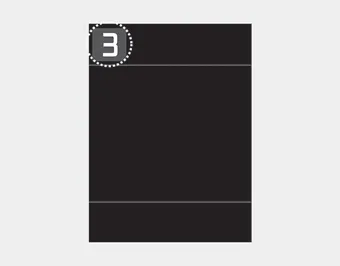

: Indicates that shifting up to the
3rd gear is desired (currently the shift lever is in the 2nd or 1st gear).
: Indicates that shifting down to
the 3rd gear is desired (currently the shift lever is in the 4th, 5th, or 6th gear).
When the system is not working properly, the indicator is not displayed.
Odometer The odometer indicates the total distance the vehicle has been driven. You will also find the odometer useful to determine when periodic maintenance should be performed.
Overview LCD windows show the following various information to drivers. - Trip information - LCD modes - Warning messages
