Kia Rio: Gauges / Odometer, Outside Temperature Gauge

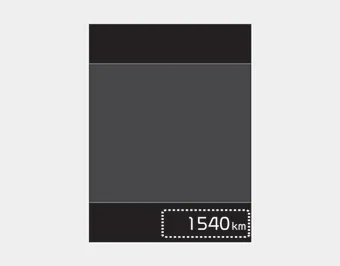

Odometer
The odometer indicates the total distance the vehicle has been driven.
You will also find the odometer useful to determine when periodic maintenance should be performed.
- Odometer range :
0 ~ 1,599,999 km or 0 ~ 999,999 miles.

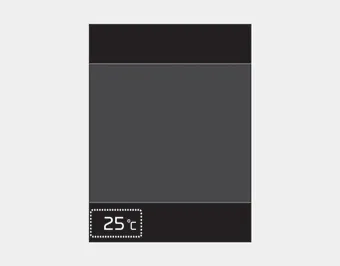

Outside Temperature Gauge
This gauge indicates the current outside air temperatures by 1°C (1°F).
Temperature range :
- Type A Cluster : - 40°C ~ 85°C (- 40°F ~ 199°F)
- Type B Cluster : - 40°C ~ 85°C (- 40°F ~ 211°F)
The outside temperature on the display may not change immediately like a general thermometer to prevent the driver from being inattentive.
To change the temperature unit (from °C to °F or from °F to °C)
• Type A Cluster
Press the TRIP button for 5 seconds and more.
• Type B Cluster
The temperature unit can be changed by using the “User Settings” mode of the LCD Windows.
❈ For more details, refer to “LCD Windows” in this chapter.
Engine coolant temperature gauge This gauge shows the temperature of the engine coolant when the ignition switch is ON. If the gauge pointer moves beyond the normal range area toward the “H” position, it indicates overheating that may damage the engine.
Intelligent Variable Transmission (if equipped) This indicator displays which intelligent variable transmission shift lever is selected. Park :P Reverse : R Neutral : N Drive :D Manual Mode : 1, 2, 3, 4, 5, 6, 7, 8 Manual Transmission shift indicator This indicator informs which gear is desired while driving to save fuel.
