Kia Rio: Body Side Molding / Quarter Garnish
Repair procedures
| Replacement |
Put on gloves to protect your hands. |
|
| 1. |

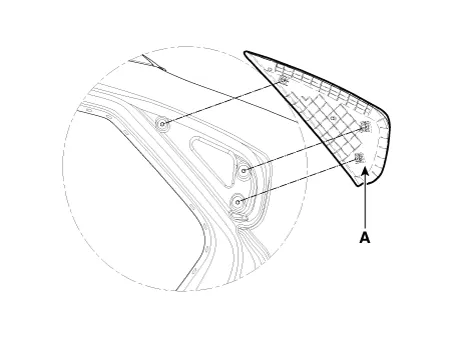

Using a remover, remove the quater garnish (A).
|
| 2. |
Install in the reverse order of removal.
|
Repair procedures Replacement Put on gloves to protect your hands. • Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Repair procedures Replacement Put on gloves to protect your hands. • Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
