Kia Rio: Engine Control System / Purge Control Solenoid Valve (PCSV)

Kia Rio 2017-2023 YB Service Manual / Engine Control / Fuel System / Engine Control System / Purge Control Solenoid Valve (PCSV)

Specifications

Specification

Purge Control Solenoid Valve (PCSV)

Item	Specification
Coil Resistance (Ω)	18.5 - 22.5 [23°C (73.4°F)]
Pin	2

Description and operation

Description

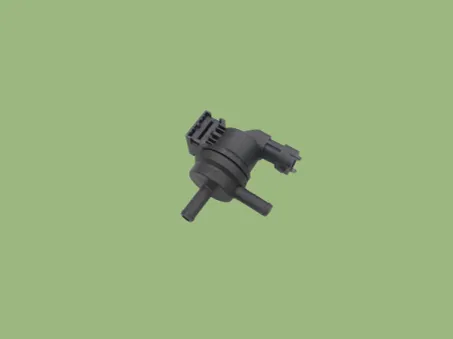

Purge Control Solenoid Valve (PCSV) is a solenoid valve and is installed on the surge tank and controls the passage between the canister and the intake manifold.

The evaporative gases gathered in the canister are delivered to the intake manifold when the PCSV is open by ECM control signal.

Schematic diagrams

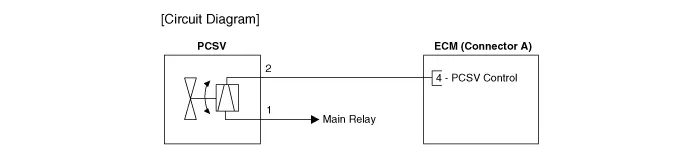

Circuit Diagram

Repair procedures

Inspection

1.	Turn ignition switch OFF.

2.	Disconnect PCSV connector.

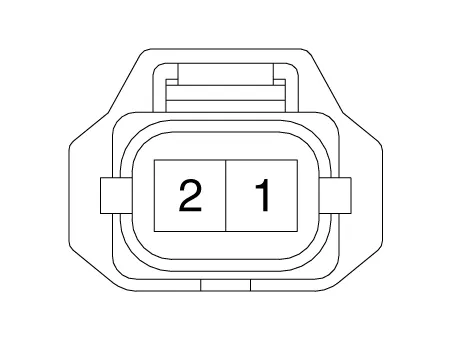

3.	Measure resistance between PCSV terminals 1 and 2.

Check that the resistance is within the specification.

Specification: 18.5 - 22.5 [23°C (73.4°F)]

Removal

1.	Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

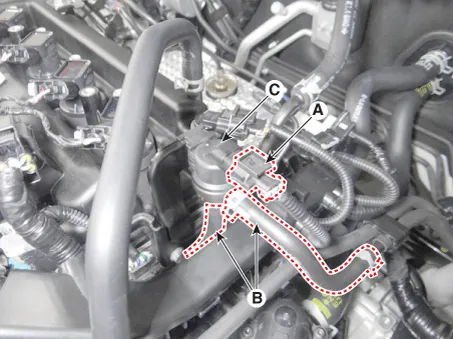

2.	Disconnect the purge control solenoid valve connector (A) and vapor hoses (B).

3.	Remove the purge control solenoid valve (C).

Installation

•	Install the component with the specified torques.

•	Note that internal damage may occur when the component is dropped. In this case, use it after inspecting.

•	Be careful of foreign material not to flow into the valve.

1.	Installation is reverse of removal.
