| Removal and Installation |
| 1. |

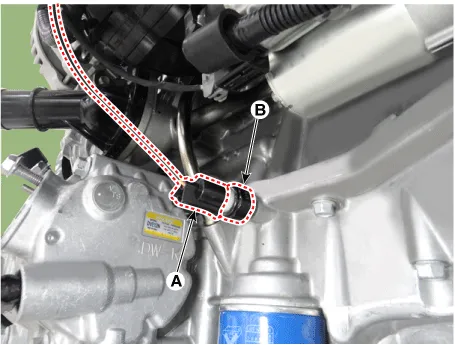

Disconnect the oil pressure switch connector (A) and then remove the oil pressure switch (B).
|
| 2. |
Install in the reverse order of removal.
|
| Inspection |
| 1. |

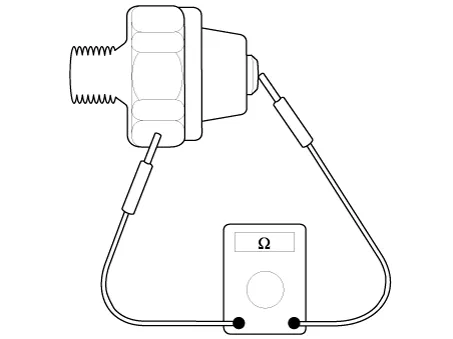

Check the continuity between the terminal and the body with an ohmmeter. If there is no continuity, replace the oil pressure switch.
|
| 2. |

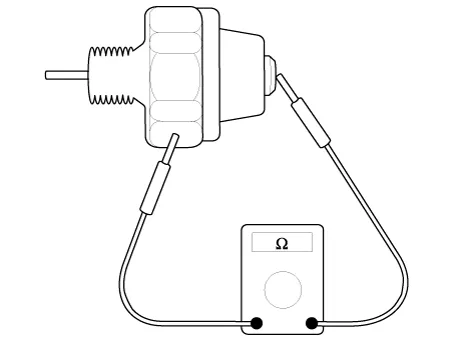

Check the continuity between the terminal and the body when the fine wire is pushed. If there is continuity even when the fine wire is pushed, replace the switch. |
| 3. |
If there is no continuity when a 50 kPa (0.50 kgf/cm², 7.25 psi) is applied through the oil hole, the switch is operaing properly. Check for air leakage. If air leaks, the diaphragm is broken. Replace it.
|
