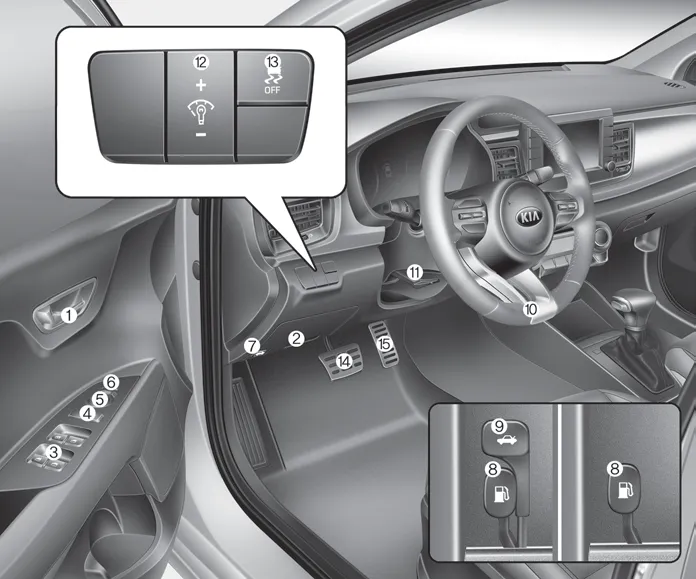

1. Inside door handle
2. Inner fuse panel
3. Power window switches
4. Power window lock button
5. Outside rearview mirror control switch
6. Outside rearview mirror folding switch
7. Hood release lever
9 8. Fuel filler door release lever
9. Trunk open lever
10. Steering wheel
11. Steering wheel tilt control
12. Instrument panel illumination control switch
13. ESC OFF button
14. Brake pedal
15. Accelerator pedal

    ■ Front view 1. Hood 2. Head lamp (Features of your vehicle) Head lamp (Maintenance) 3. Front fog lamp (Features of your vehicle) Front fog lamp or DRL lamp (Maintenance) 4.

    1. Instrument cluster 2. Horn 3. Driver’s front air bag 4. Light control/Turn signals 5. Wiper/Washer 6. Ignition switch ENGINE START/STOP button 7.
