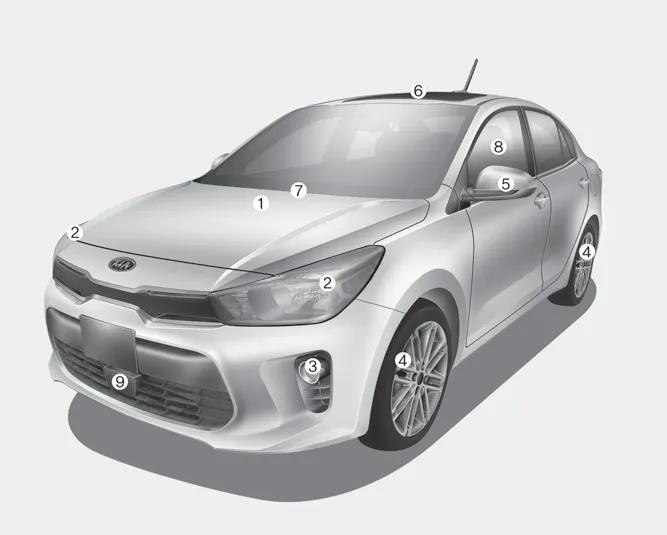

■ Front view
1. Hood
2. Head lamp (Features of your vehicle)
Head lamp (Maintenance)
3. Front fog lamp (Features of your vehicle)
Front fog lamp or DRL lamp (Maintenance)
4. Wheel and tire
5. Outside rearview mirror
6. Sunroof
7. Front windshield wiper blades (Features of your vehicle)
Front windshield wiper blades (Maintenance)
8. Windows
9. Forward Collision-Avoidance Assist (FCA) system

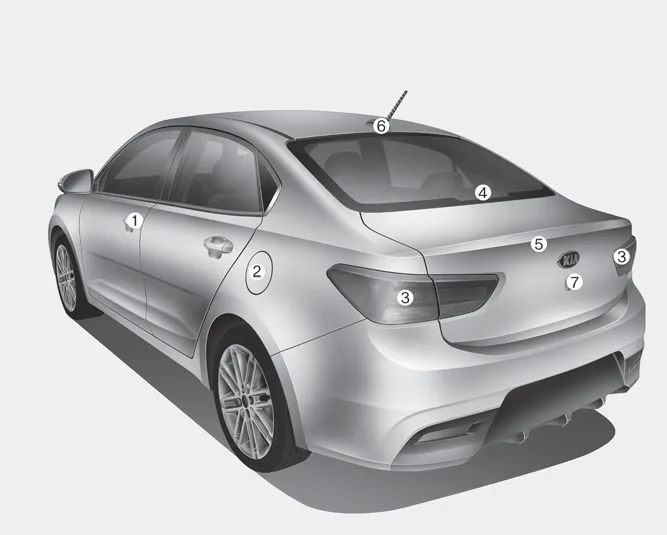

■ Rear view (4 DOOR)
1. Door locks
2. Fuel filler door
3. Rear combination lamp (Maintenance)
4. High mounted stop lamp (Maintenance)
5. Trunk
6. Antenna
7. Rear View Monitor system

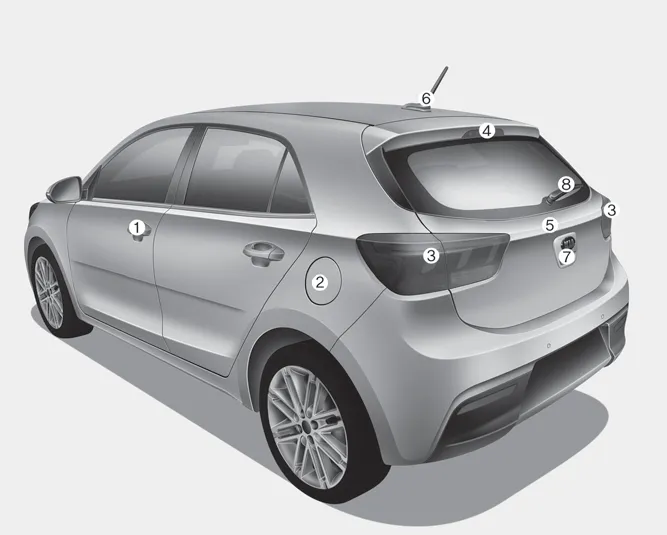

■ Rear view (5 DOOR)
1. Door locks
2. Fuel filler door
3. Rear combination lamp (Maintenance)
4. High mounted stop lamp (Maintenance)
5. Liftgate
6. Antenna
7. Rear View Monitor system
8. Rear window wiper blade (Features of your vehicle)
Rear window wiper blade (Maintenance)
