Kia Rio: Your vehicle at a glance / Instrument panel overview

Kia Rio 2017-2023 YB Owner's Manual / Your vehicle at a glance / Instrument panel overview

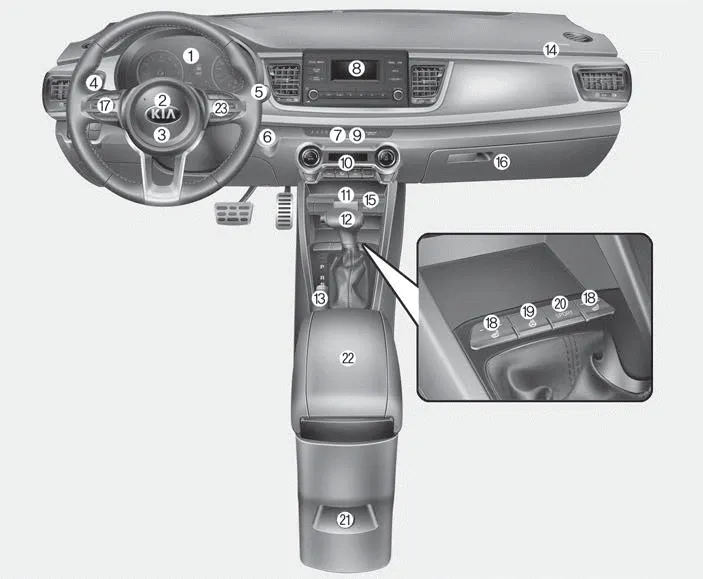

1. Instrument cluster
2. Horn
3. Driver’s front air bag
4. Light control/Turn signals
5. Wiper/Washer
6. Ignition switch
ENGINE START/STOP button
7. Hazard warning flasher switch
8. Audio
9. Central door lock switch
10. Climate control system
11. AUX, USB port
12. Manual Transmission
Intelligent Variable Transmission
13. Parking brake lever
14. Passenger’s front air bag
15. Power outlet
16. Glove box
17. Steering wheel audio control
18. Seat warmer
19. Heated steering wheel switch
20. Sport mode system
21. USB charger
22. Center console storage
23. Cruise control button

    1. Inside door handle 2. Inner fuse panel 3. Power window switches 4. Power window lock button 5. Outside rearview mirror control switch 6. Outside rearview mirror folding switch 7.

    ■ Gamma II 1.6L MPI (Gasoline engine) 1. Engine coolant reservoir 2. Engine oil filler cap 3. Brake / clutch fluid reservoir 4. Air cleaner 5.
