Components and components location

Component Location

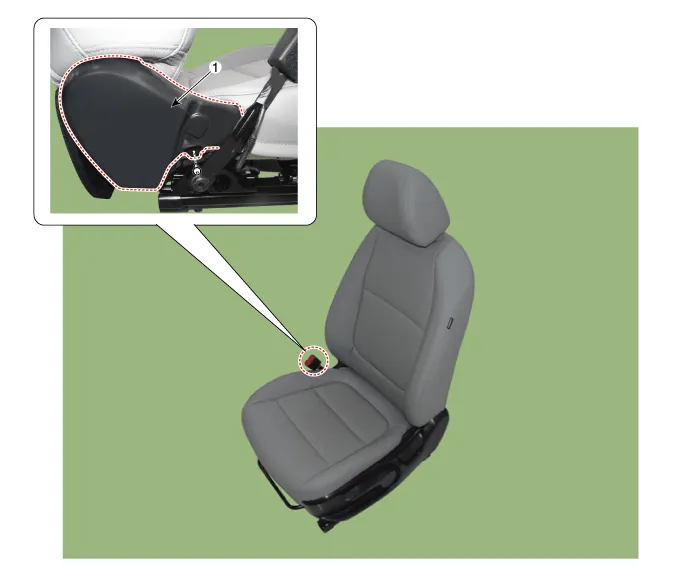

1. Front seat shield inner cover

Repair procedures

Replacement

Put on gloves to protect your hands.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Take care not to bend or scratch the trim and panels.

1.	Remove the front seat assembly. (Refer to Front Seat - "Front Seat Assembly")

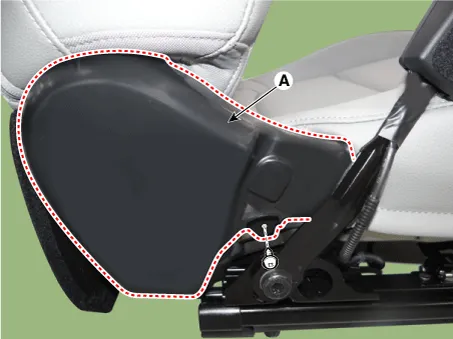

2.	Using a remover, remove the front seat shield inner cover (A).

Install in the reverse order of removal.

Replace any damaged clips.
