Kia Rio: Front Seat / Front Seat Shield Outer Cover

Components and components location

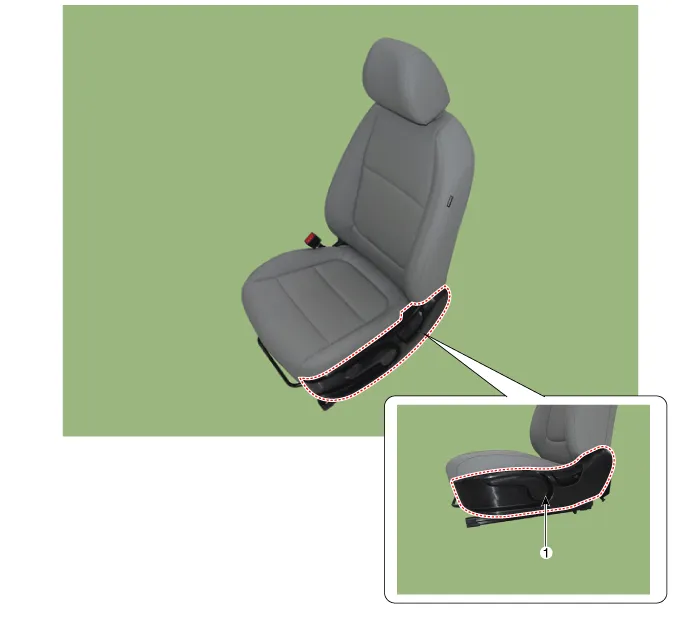

Component Location

1. Front seat shield outer cover


Repair procedures

Replacement


Put on gloves to protect your hands.



Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

Take care not to bend or scratch the trim and panels.

1.

Remove the front seat assembly.

(Refer to Front Seat - "Front Seat Assembly")

2.

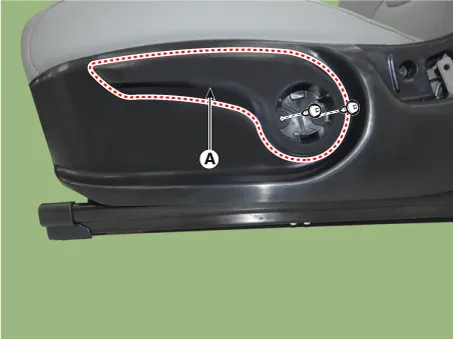

Remove the recliner handle (A) after loosening the screw.



Correctly remove the front seat shield outer cover to the removal procedure and direction.

Be careful not to damage the mounting bracket and hook when removing the cover.

3.

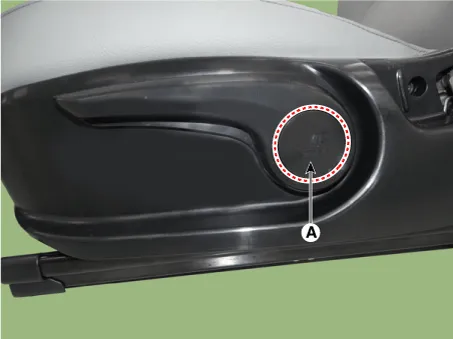

Remove the pumping lever cap (A).

4.

Remove the pumping lever (A).

5.

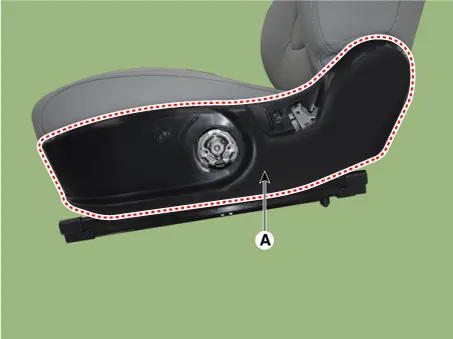

Remove the front seat shield outer cover (A) after loosening the mounting screws.

6.

Install in the reverse order of removal.



Make sure the fuel filler door locks/unlocks and opens/closes properly.

Replace any damaged clips.
